PYE OLYMPIC M201 - Page 90

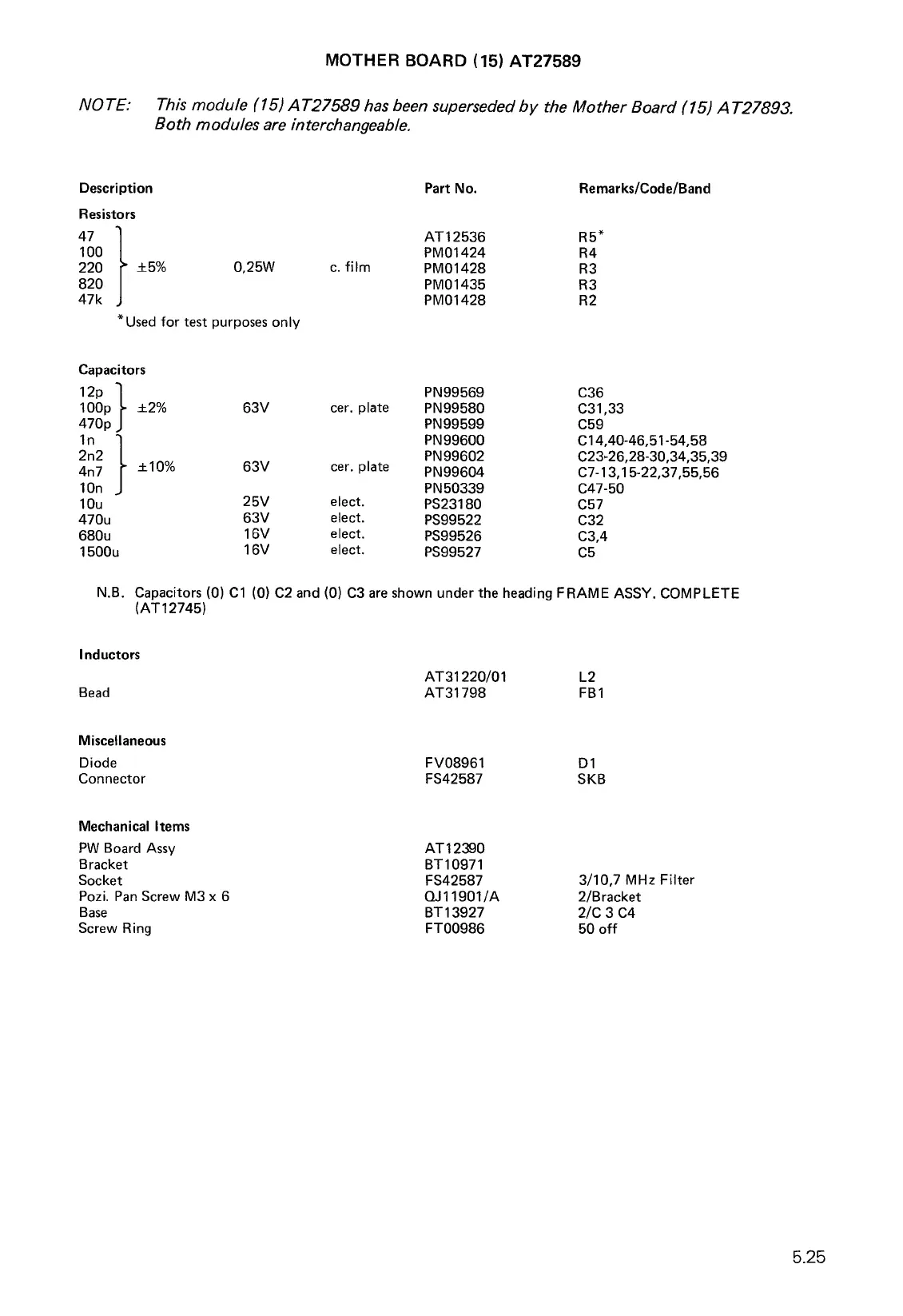

MOTHER BOARD (15) AT27589
NOTE: This module (15) AT27589 has been superseded by the Mother Board (15) AT27893.
Both modules are interchangeable.
Description Part No.
Remarks/Code/Band
Resistors
47
AT12536
R5*
100
PM01424 R4
220
±5% 0,25W c. film
PM01428
R3
820
PM01435
R3
47k
PM01428
R2
Capacitors
12p
*Used
for test purposes only
PN99569
C36
100p
1
.±.2%
63V
cer. plate
PN99580
C31,33
470p
PN99599
C59
1n
PN99600
C14,40-46,51-54,58
2n2
PN99602
C23-26,28-30,34,35,39
4n7
}
±10% 63V
cer. plate
PN99604
C7-13,15-22,37,55,56
10n
PN50339
C47-50
10u
25V elect.
PS23180 C57
470u
63V
elect.
PS99522
C32
680u
16V
elect.
PS99526
C3,4
1500u
16V elect.
PS99527
C5
N.B. Capacitors (0) C1 (0) C2 and (0) C3 are shown under the heading FRAME ASSY. COMPLETE
(AT12745)
Inductors
AT31220/01  L2
Bead  AT31798
 FB1
Miscellaneous
Diode 
FV08961 
D1
Connector 
FS42587 
SKB
Mechanical Items
PW Board Assy 
AT12390
Bracket  BT10971
Socket  FS42587 
3/10,7 MHz Filter
Pozi. Pan Screw M3 x 6
 QJ11901/A 
2/Bracket
Base  BT13927 
2/C 3 C4
Screw Ring 
FT00986 
50 off
5.25
