PYE OLYMPIC M201 - Page 92

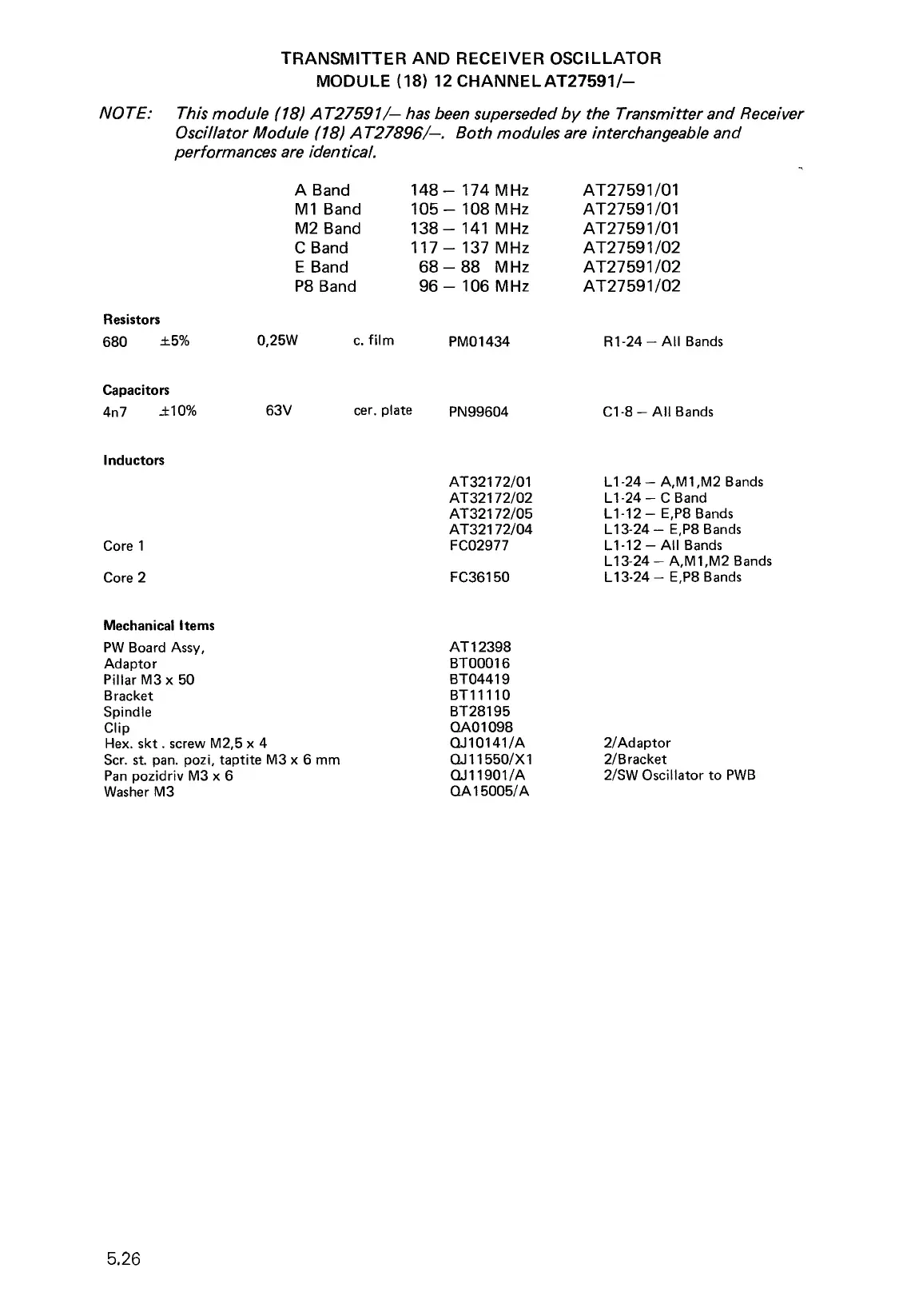

TRANSMITTER AND RECEIVER OSCILLATOR
MODULE (18) 12 CHANNELAT27591/—
NOTE: This module (18) AT27591/— has been superseded by the Transmitter and Receiver
Oscillator Module (18) AT27896/—. Both modules are interchangeable and
performances are identical.
A Band  148— 174 MHz  AT27591/01
M1 Band  105 — 108 MHz  AT27591/01
M2 Band

138 — 141 MHz 
AT27591/01
C Band  117 — 137 MHz  AT27591/02
E Band  68 — 88 MHz  AT27591/02
P8 Band  96 — 106 MHz 
AT27591/02
Resistors
680  ±5% 
0,25W
 c. film 
PM01434  R1-24 — All Bands
Capacitors
4n7 
±10% 
63V 
cer. plate

PN99604

C1-8 — All Bands
Inductors
Core 1
Core 2
AT32172/01 
L1-24 — A,M1,M2 Bands
AT32172/02  L1-24 — C Band
AT32172/05 
L1-12 — E,P8 Bands
AT32172/04 
L13-24 — E,P8 Bands
FCO2977 
L1-12 — All Bands
L13-24 — A,M1,M2 Bands
FC36150 
L13-24 — E,P8 Bands
Mechanical Items
PW Board Assy, 
AT12398
Adaptor

BT00016
Pillar M3 x 50 
BT04419
Bracket 
BT11110
Spindle

BT28195
Clip 
QA01098
Hex. skt . screw M2,5 x 4

QJ10141/A  2/Adaptor
Scr. st. pan. pozi, taptite M3 x 6 mm 
QJ11550/X1  2/Bracket
Pan pozidriv M3 x 6 
QJ11901/A
 2/SW Oscillator to PWB
Washer M3 
QA15005/A
5.26
