16

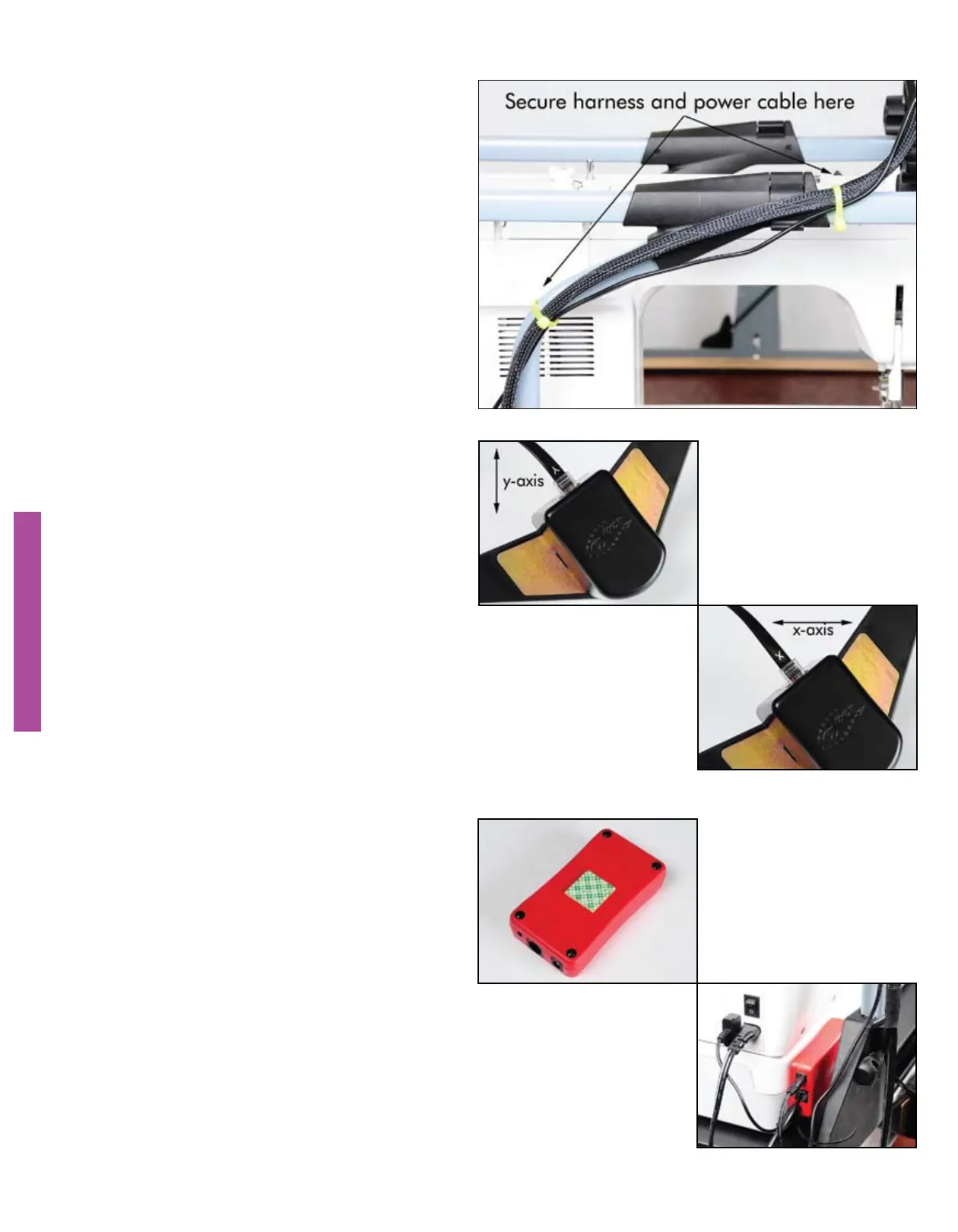

To keep your QBOT wires tidy, secure the
wiring harness and power supply cord as
shown using the included wire ties.
Plug in the Y-axis cable from the wiring
harness to the upper drive assembly (the
assembly on the side of the carriage)
and the X-axis cable to the lower drive
assembly (the assembly on the back of
the carriage).
TIP-Push these connectors in until you
hear a click.
If you have a plastic Quilter’s Cruise
Control brain, adhere the adhesive pad
to the back of the brain then mount it
to the back of your sewing machine as
shown. If you have a red metal Quilter’s
Cruise Control brain, please skip to the
bottom of the next page.
MAKING THE CONNECTIONS
MAKING THE CONNECTIONS
