INSTALLING THE DRIVE SYSTEM
INSTALLING THE DRIVE SYSTEM
6
You are now ready to install the lower
drive wire. Use similar steps as with the
upper wire.

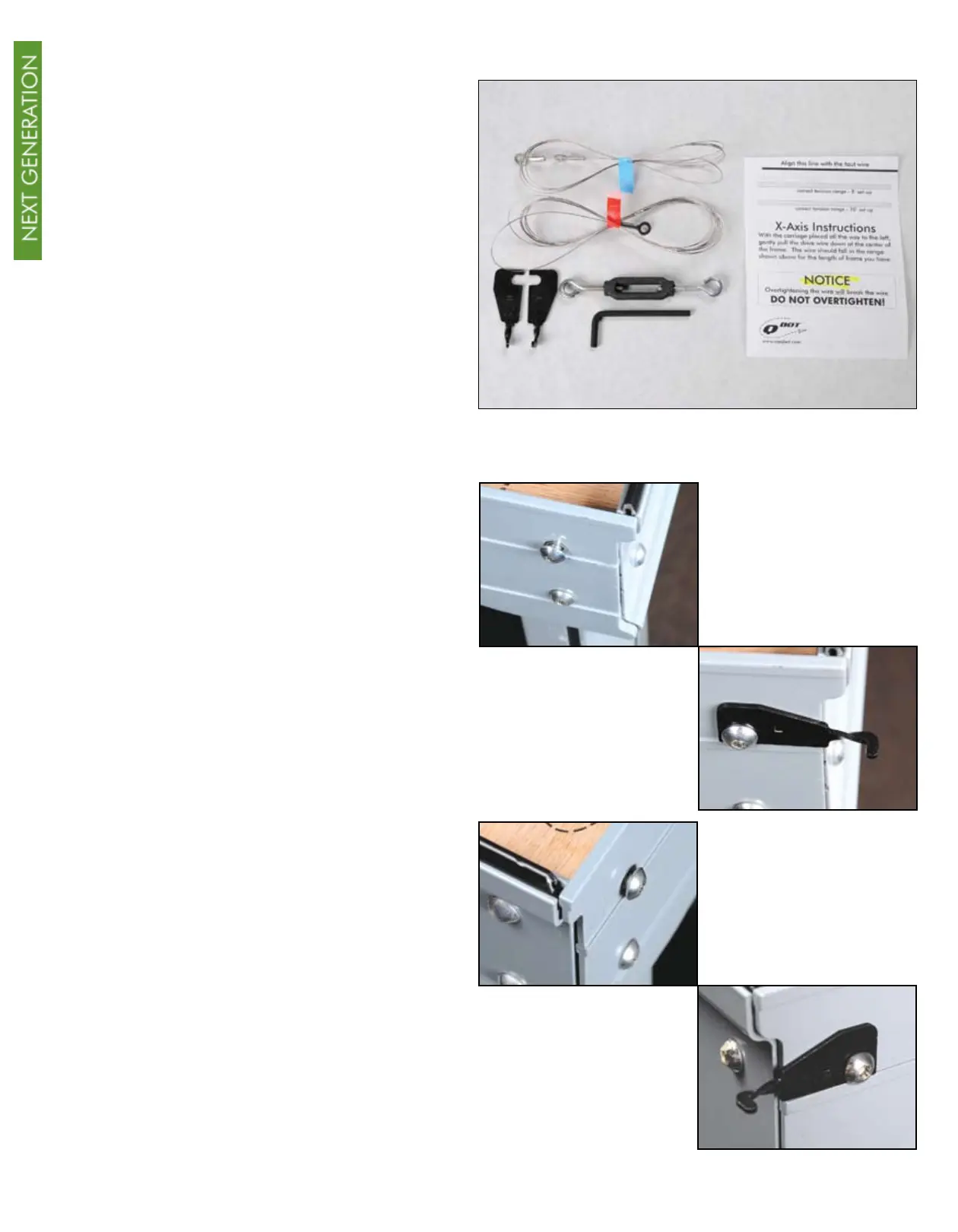

Gather the following within reach: 2 X-axis
wire holders, 4 mm hex key, 60” or 120“
wire (depending upon your frame length),
one tensioner and tensioning template.
Keep the wire that you don’t use in a safe
place in case you change the length of
your frame.
Standing at the back of your frame, loosen
slightly the upper left hand screw using
the hex key.
Slide the X-axis wire holder, labeled ‘L’,
between the frame and the screw head.
Tighten the screw securely.
Loosen slightly the upper right hand screw,
slide the X-axis wire holder labeled ‘R’
between the frame and the screw head.
Tighten securely.
