MAKING THE CONNECTIONS
MAKING THE CONNECTIONS
17

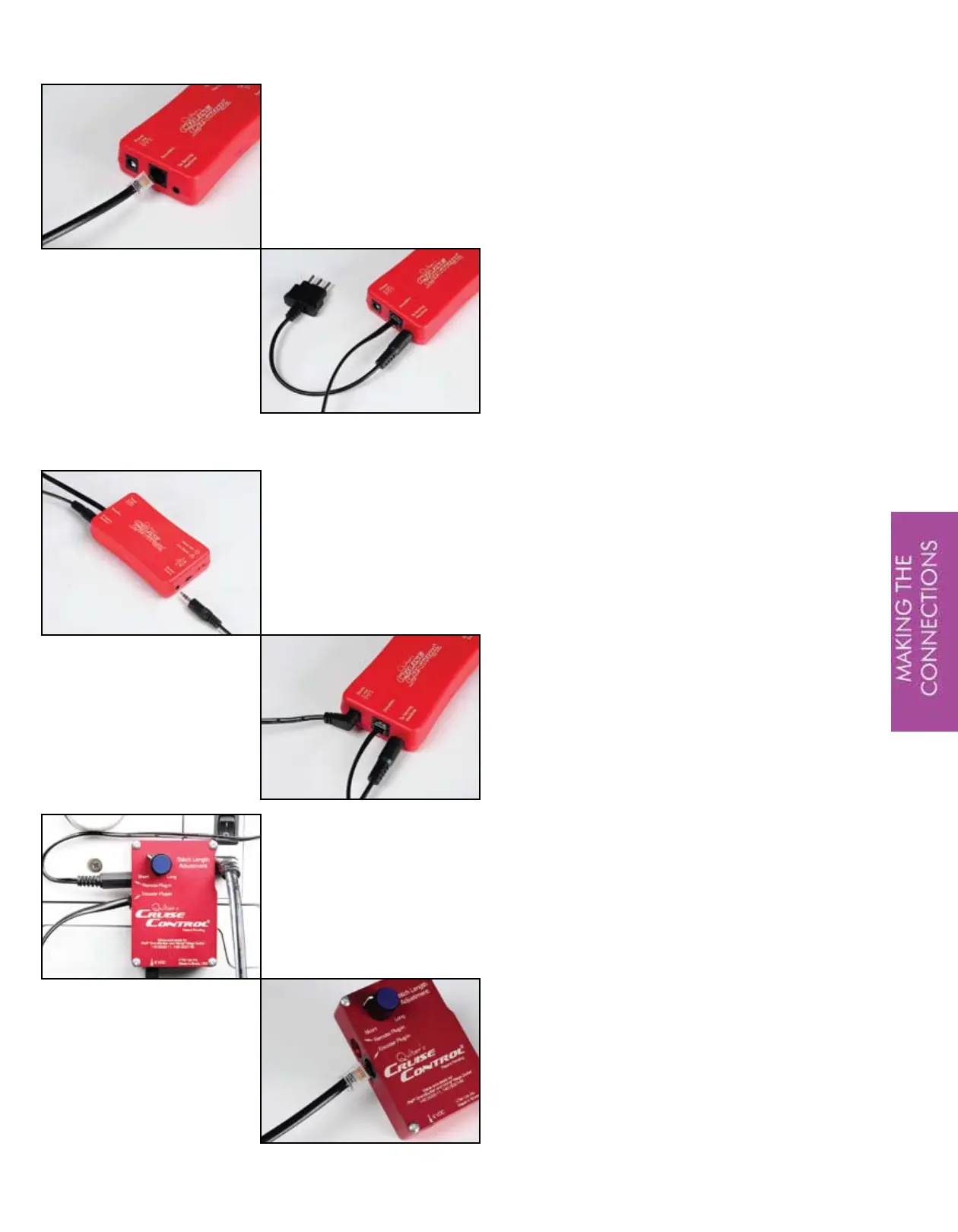

Plug the smaller flat cable that looks
like a phone connector into the port
on the Quilter’s Cruise Control labeled
‘Encoders’.
Plug one end of the sewing machine
connector cord into the port on the
QCC labeled ‘To Sewing Machine’.
The other end of the cord with the 3
pins will plug into the sewing machine
foot pedal port. If your sewing
machine differs in appearance, use the
appropriate connector cord that came
with your Quilter’s Cruise Control.
Next, connect the last connector from
the QBOT wiring harness to the port
labeled ‘Remote Switch’ on the QCC.
The last connection to the QCC unit is
the power supply connection. Use only
the power supply that came with your
QCC.
Plug the QCC power transformer and
the QBOT power cord into a surge
protector.
If you have a metal QCC brain, plug
it directly into the back of your sewing
machine.
From the QBOT wiring harness, connect
the smaller flat cable to the port on
the Quilter’s Cruise Control marked
‘Encoders’.
If your Quilter’s Cruise Control has
the encoder wires ‘hard-wired’ to the
brain, you do not need to make this
connection.
