INSTALLING THE DRIVE SYSTEM
INSTALLING THE DRIVE SYSTEM
2

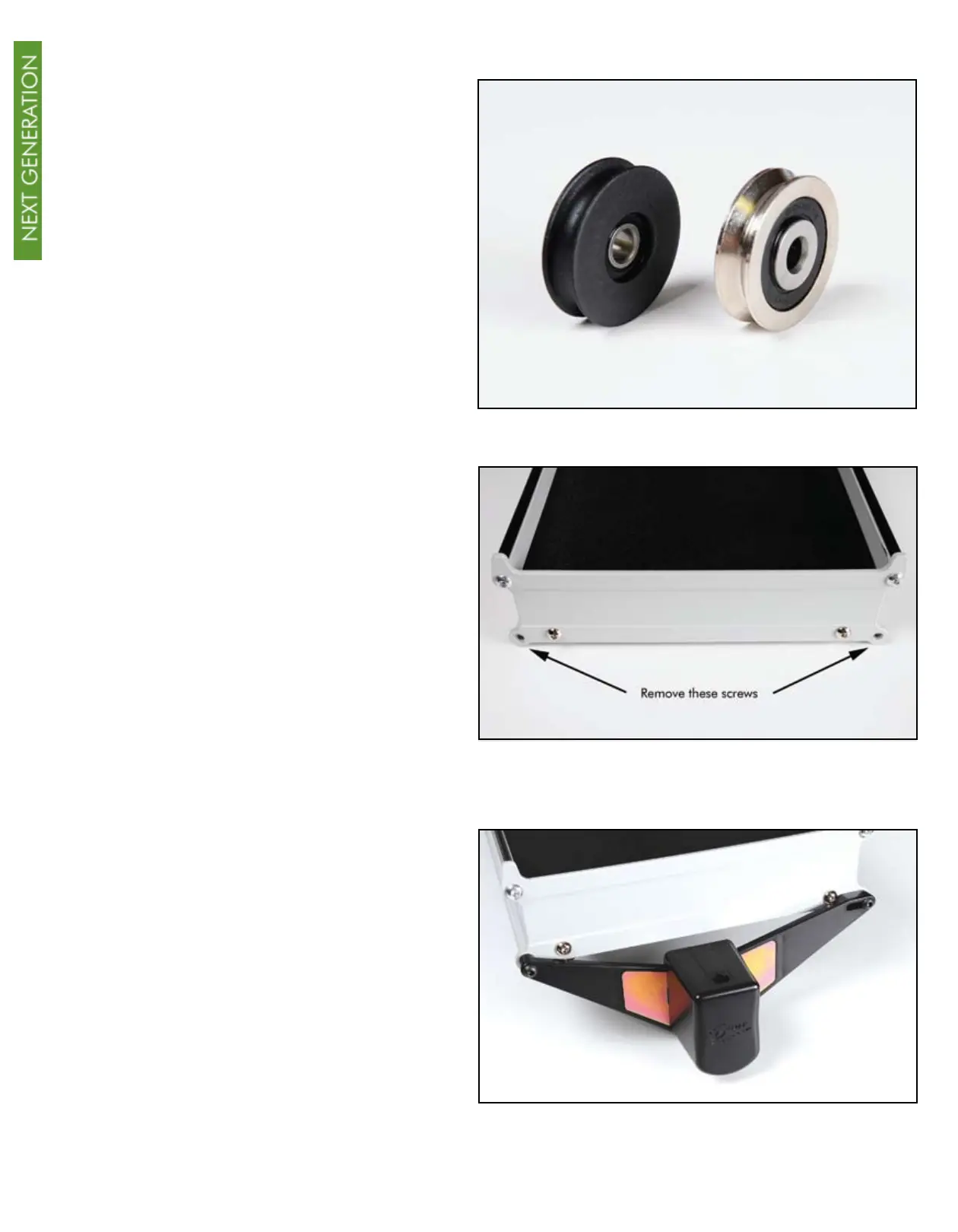

For best performance of the QBOT, please
replace all eight (8) wheels with steel
wheels. If you already have steel wheels,
then you do not need to replace them.
If you have any questions, please contact
your dealer.
Using the 4 mm hex key, remove the two
bottom screws from the back side of the
lower carriage. You will not use these
screws again. Set them aside with other
parts that will not be reused.
Mount one of the QBOT drive assemblies
to the back of the lower carriage using
two 1½” button head screws provided.
Make sure the drive assembly is secure by
tightening the screws with the hex key.
Plastic Metal
