Quanta Computer A5QB User Manual

s erver T op C over
Top Cover

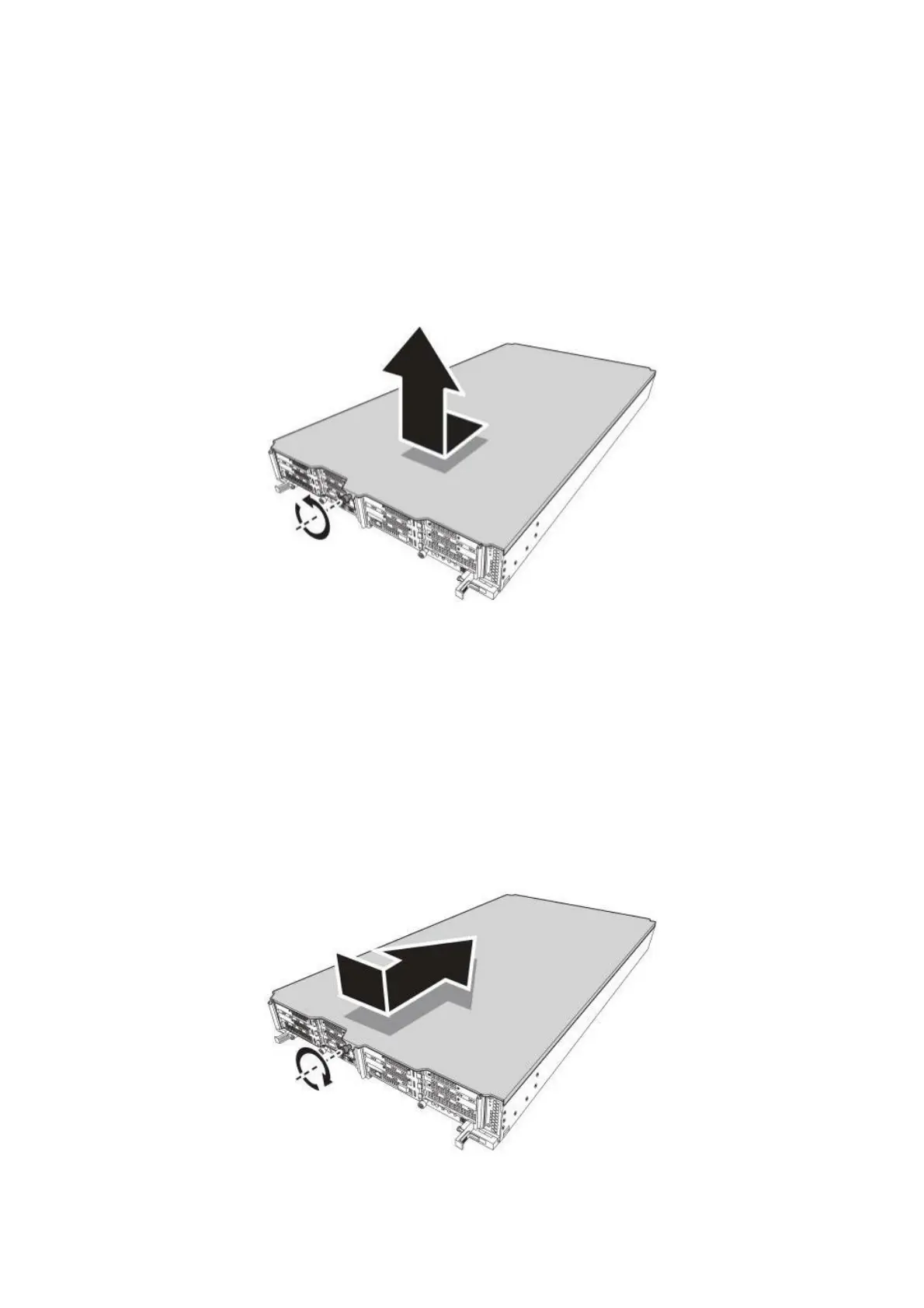

Opening the Top Cover
1. Turn off the system and any attached peripherals.
2. Unplug the busbar power cable and disconnect all peripherals, and LAN cabling.
3. Loosen the captive screw securing the top cover. Then slide the top cover towards
the front side.
4. Lift the top cover off the chassis.
Figure 1-4: Opening the Top Cover
Closing the Top Cover
1. Align the top cover with the chassis. Make sure there is no cabling caught
between the cover and chassis.
2. Place the top cover on the chassis.
3. Slide the top cover towards the rear of the system. Make sure the top cover is
flush with the chassis. If it is not, remove the top cover and reposition the top
cover over the chassis again.
4. Secure the top cover to the chassis with captive screw.
Figure 1-5: Closing the Top Cover
1-6
