Installing the PDB Board
Prerequisite:
♦ Remove the top cover. See Opening the Top Cover on page 1-6.
1. Align and install the PDB board on the chassis. Then secure the PDB board to the
the chassis with screws.

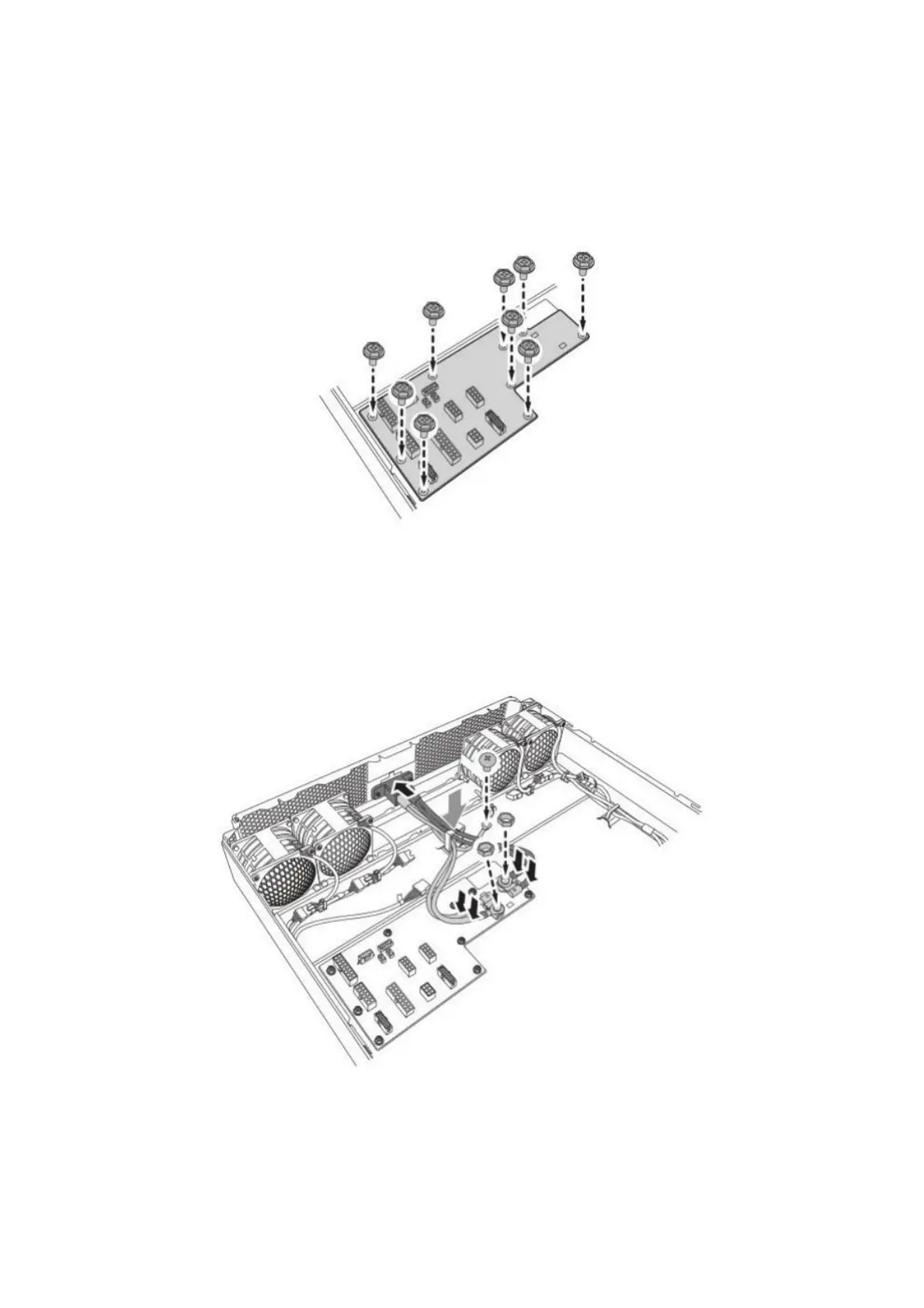

Figure 1-19: Installing the PDB Board
2. Install the the busbar power clip into its compartment on the chassis.
3. Align and install the busbar power cable lugs with its respective power terminal
stud on the PDB board. Secure the busbar power cables with Hex nuts and screw,
and then route and push the cables downwards to the clip until they secure into
place.
Figure 1-20: Installing the Busbar Power Cables
1-15
