s erver r Iser 2 a ssembly
Installing the Riser 2 Assembly
Prerequisite:
♦ Remove the top cover. See Opening the Top Cover on page 1-6.
♦ Remove the air duct. See Removing the Air Duct on page 1-7.
♦ Install the riser 2 boards. See Installing a Riser 2 Board on page 1-33.
1. Align the Tesla T4 card with the riser 2 board connector and slide in place. The
bracket on the Tesla T4 card is flush with the riser 2 bracket if the Tesla T4 card is
seated correctly. Repeat the same steps to install the remaining Tesla T4 cards.

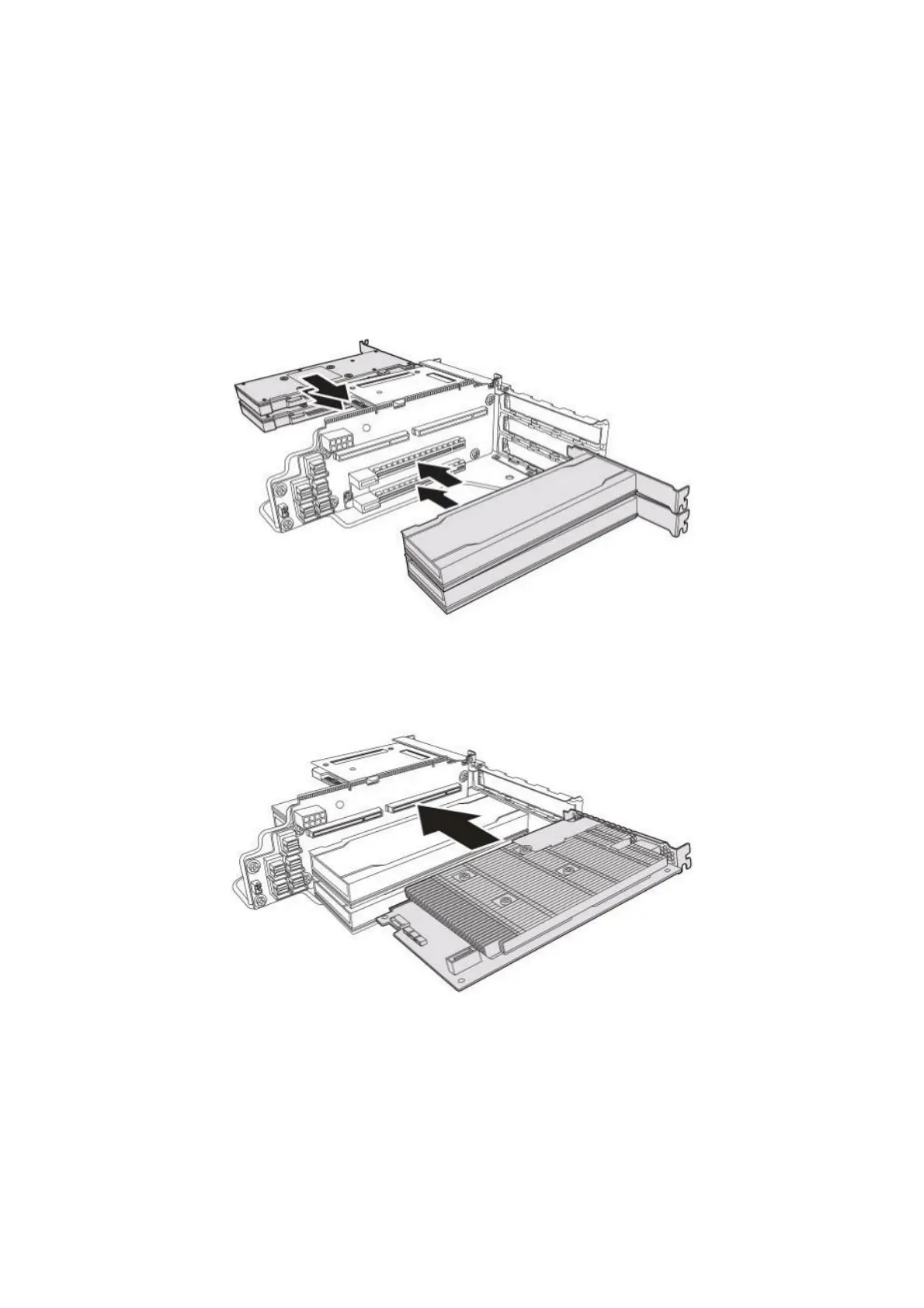

Figure 1-46: Installing the Tesla T4 Cards
2. Align the K2X-N with the riser 2 board connector and slide in place. The bracket
on the K2X-N card is flush with the riser 2 bracket if the K2X-N card is seated
correctly.
Figure 1-47: Installing the K2X-NCard
1-30
