s
erver
r
Iser
2 a
ssembly

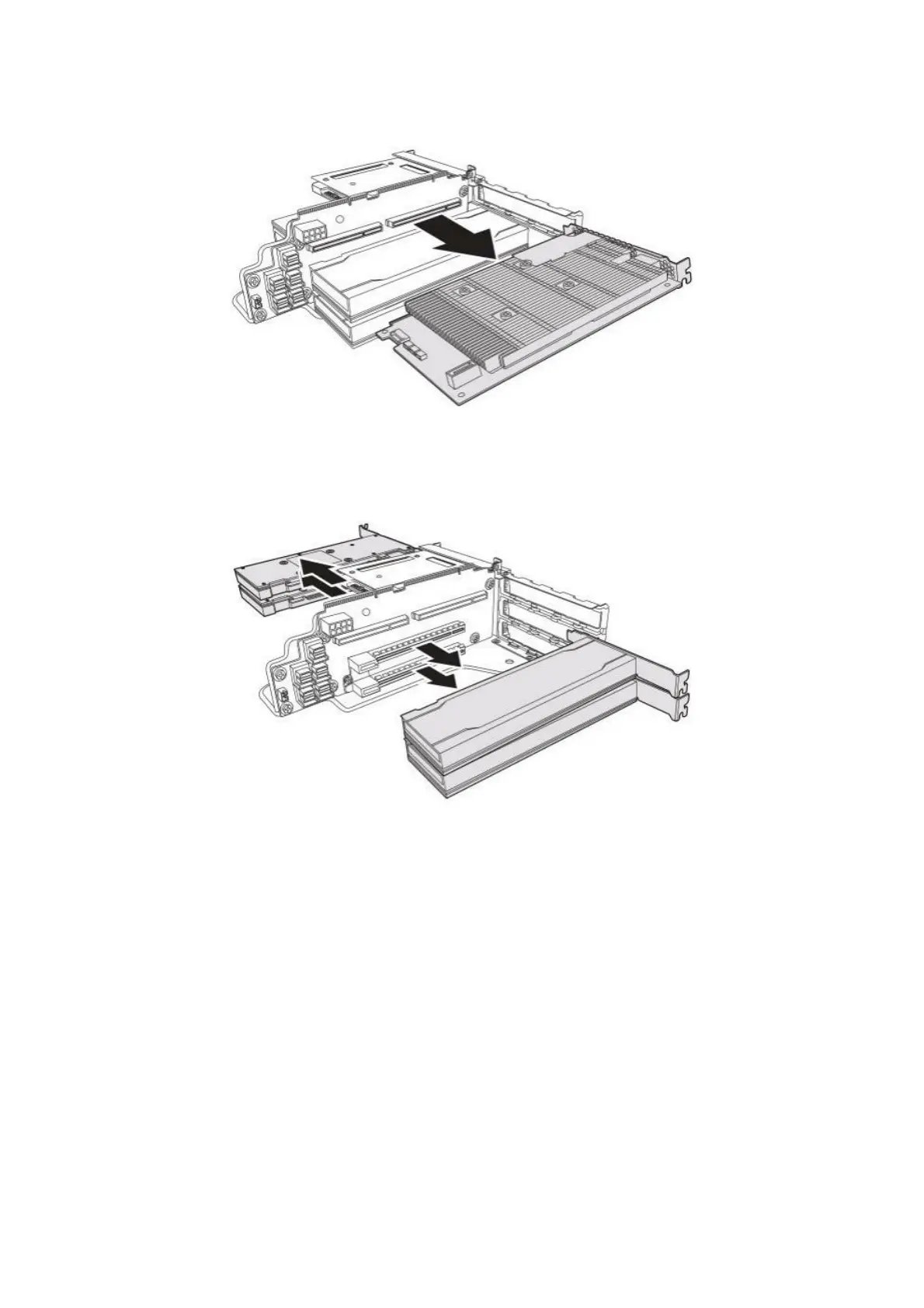

5. Disconnect the K2X-N card from the riser 2 board connector. Then remove the
K2X-N card from the riser 2 bracket.
Figure 1-44: Removing the K2X-N Card
6. Disconnect the Tesla T4 card from the riser 2 board connector. Then remove the
Tesla T4 card from the riser 2 bracket. Repeat the same steps to remove the
remaining Tesla T4 cards.
Figure 1-45: Removing the Tesla T4 Cards
1-29
