s erver r Iser 1 a ssembly
Riser 1 Assembly
Removing the Riser 1 Assembly
Prerequisite:
♦ Remove the top cover. See Opening the Top Cover on page 1-6.
♦ Remove the air duct. See Removing the Air Duct on page 1-7.
1. Loosen the captive screw securing the riser 1 assembly to the chassis.
2. Hold the riser assembly holder and lift it to remove the riser 1 assembly from the
chassis.
Riser assembly
holder

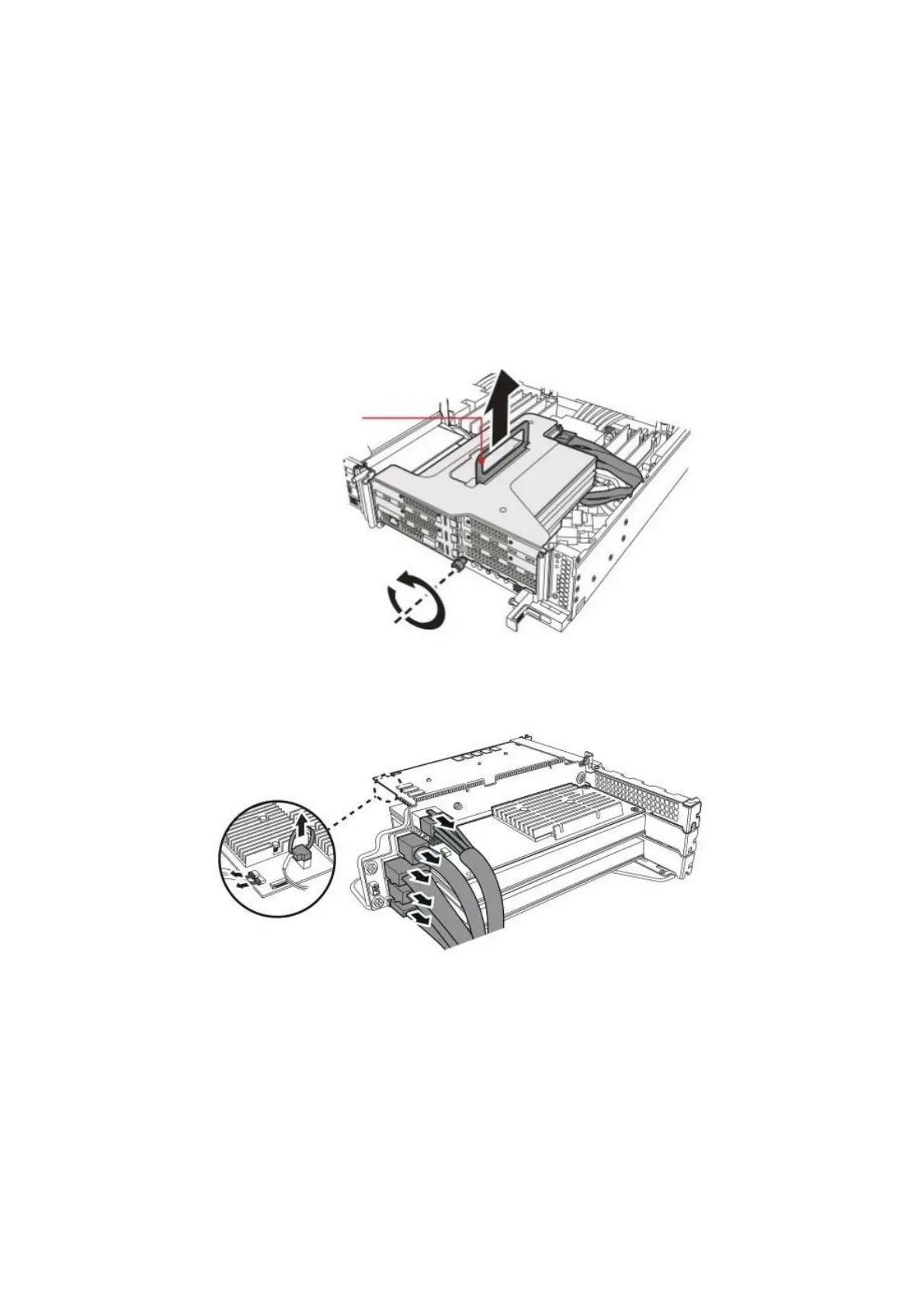

Figure 1-32: Removing the Riser 1 Assembly
3. Disconnect the power and Mini SAS HD cables from the riser 1 board connectors.
Then disconnect the SATA and UART cables from the K2C-AB card connectors.
Figure 1-33: Disconnecting the Cables
