s
erver
r
Iser
1 a
ssembly
4. Disconnect the K2T-QB card from the riser 1 board connector. Then remove the
K2T-QB card from the riser 1 bracket. Repeat the same steps to remove the
K2C-AB card.

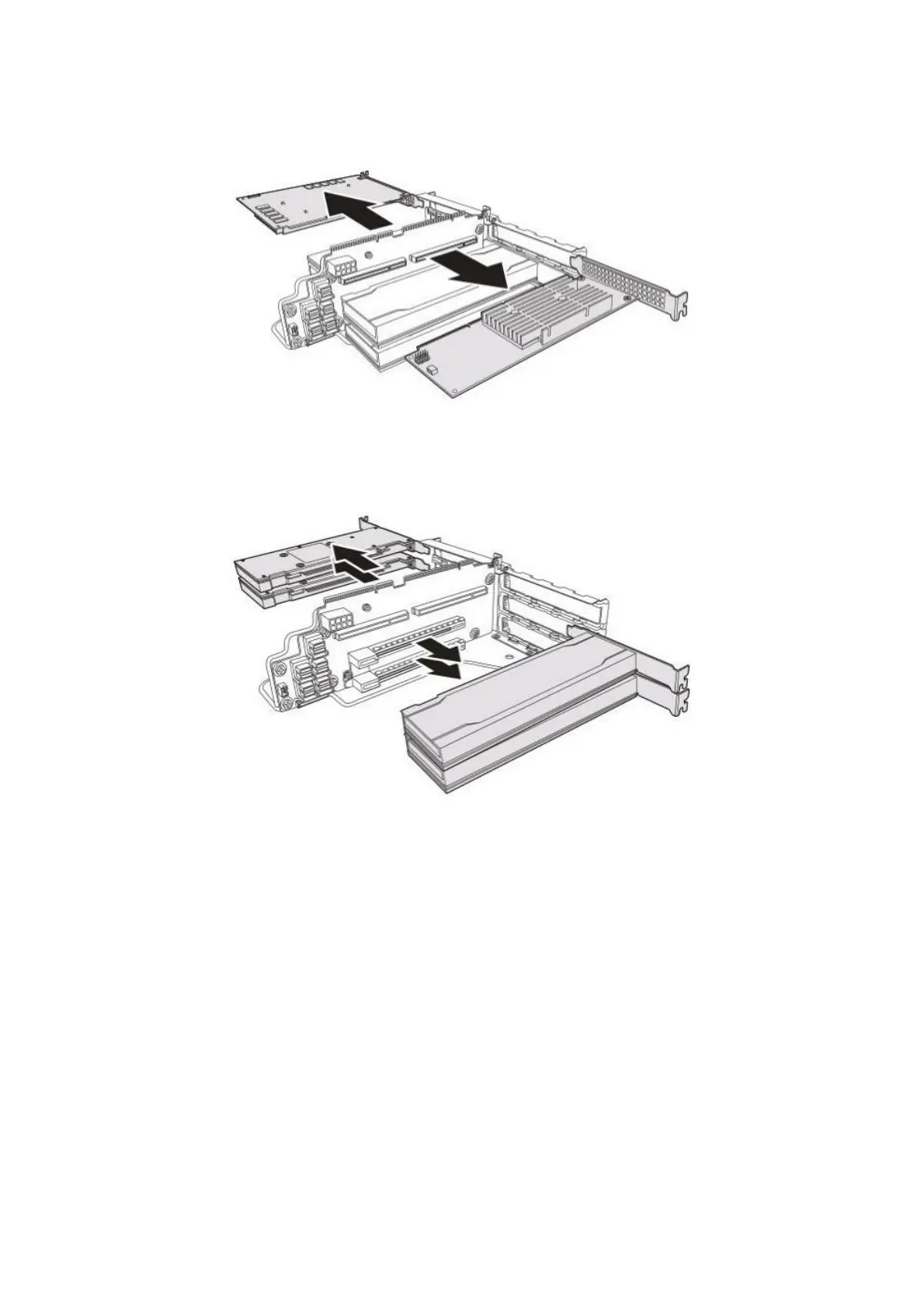

Figure 1-34: Removing the K2T-QB and K2C-AB Cards
5. Disconnect the Tesla T4 card from the riser 1 board connector. Then remove the
Tesla T4 card from the riser 1 bracket. Repeat the same steps to remove the
remaining Tesla T4 cards.
Figure 1-35: Removing the Tesla T4 Cards
1-23
