NVMe Solid State Disks

Removing a NVMe Solid State Disk

Prerequisite:

♦ Remove the top cover. See Opening the Top Cover on page 1-6.

♦ Remove the air duct. See Removing the Air Duct on page 1-7.

1. Loosen the captive screws securing the SSD tray to the chassis.

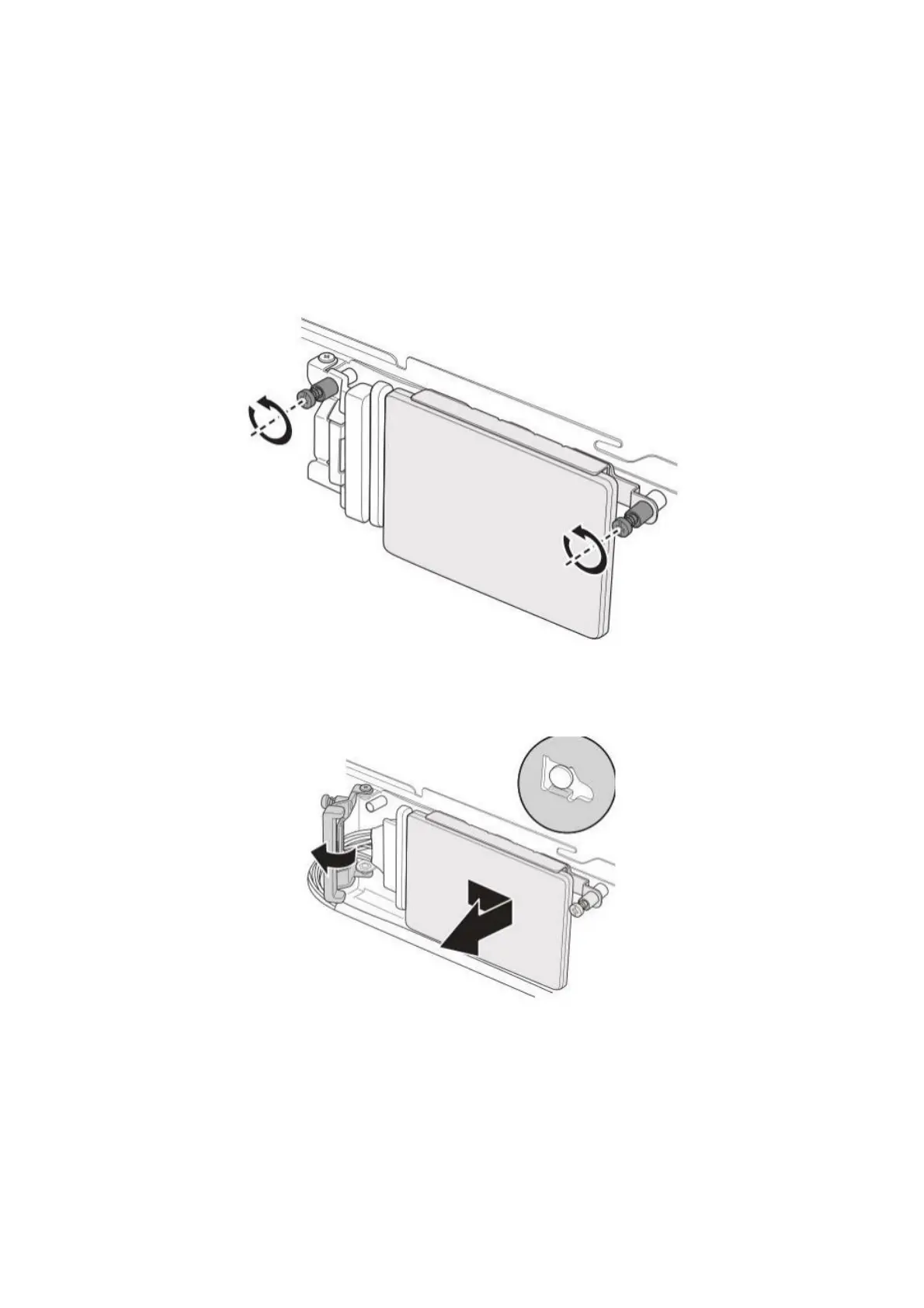

Figure 1-24: Loosening the Screws

2. Release the retainer and slide the SSD assembly backwards to disengage it from

the latch. Then remove the SSD tray from the chassis.

Figure 1-25: Removing the NVMe SSD Assembly
