Quanta Computer A5QB User Manual

s erver r Iser 2 b oards
Installing a Riser 2 Board
Prerequisite:
♦ Remove the top cover. See Opening the Top Cover on page 1-6.
♦ Remove the air duct. See Removing the Air Duct on page 1-7.
♦ Remove the riser 2 assembly. See Removing the Riser 2 Assembly on page
1-28.
1. Align and install the riser 2 board on the riser bracket.
2. Secure the riser 2 board with screws.

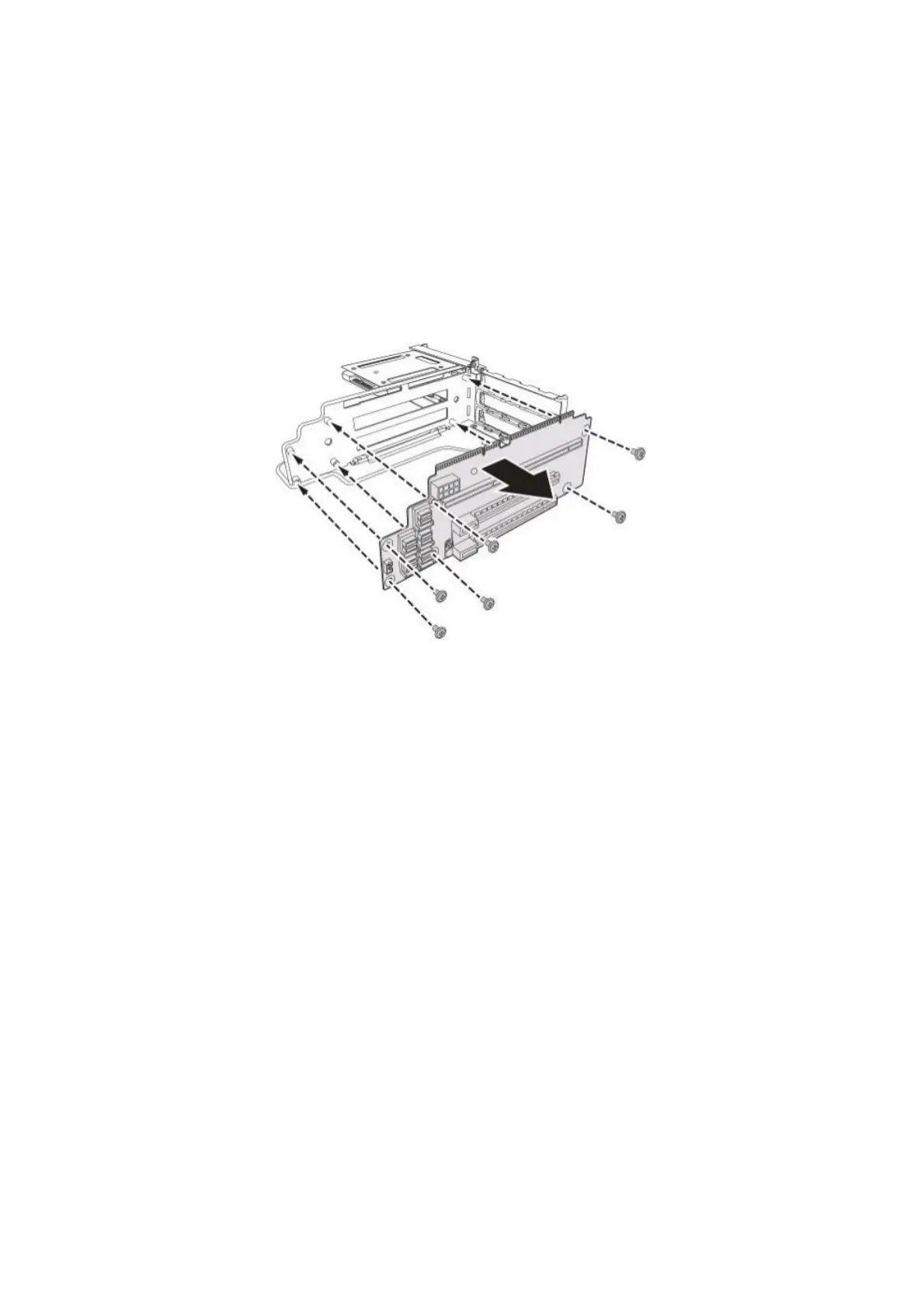

Figure 1-51: Installing the Riser 2 Board
3. To install another riser 2 board, repeat the previous steps.
1-33
