Riser 1 Boards

Removing a Riser 1 Board

Prerequisite:

♦ Remove the top cover. See Opening the Top Cover on page 1-6.

♦ Remove the air duct. See Removing the Air Duct on page 1-7.

♦ Remove the riser 1 assembly. See Removing the Riser 1 Assembly on page

1-22.

1. Remove the screws securing the riser 1 board.

2. Remove the riser 1 board from the riser bracket.

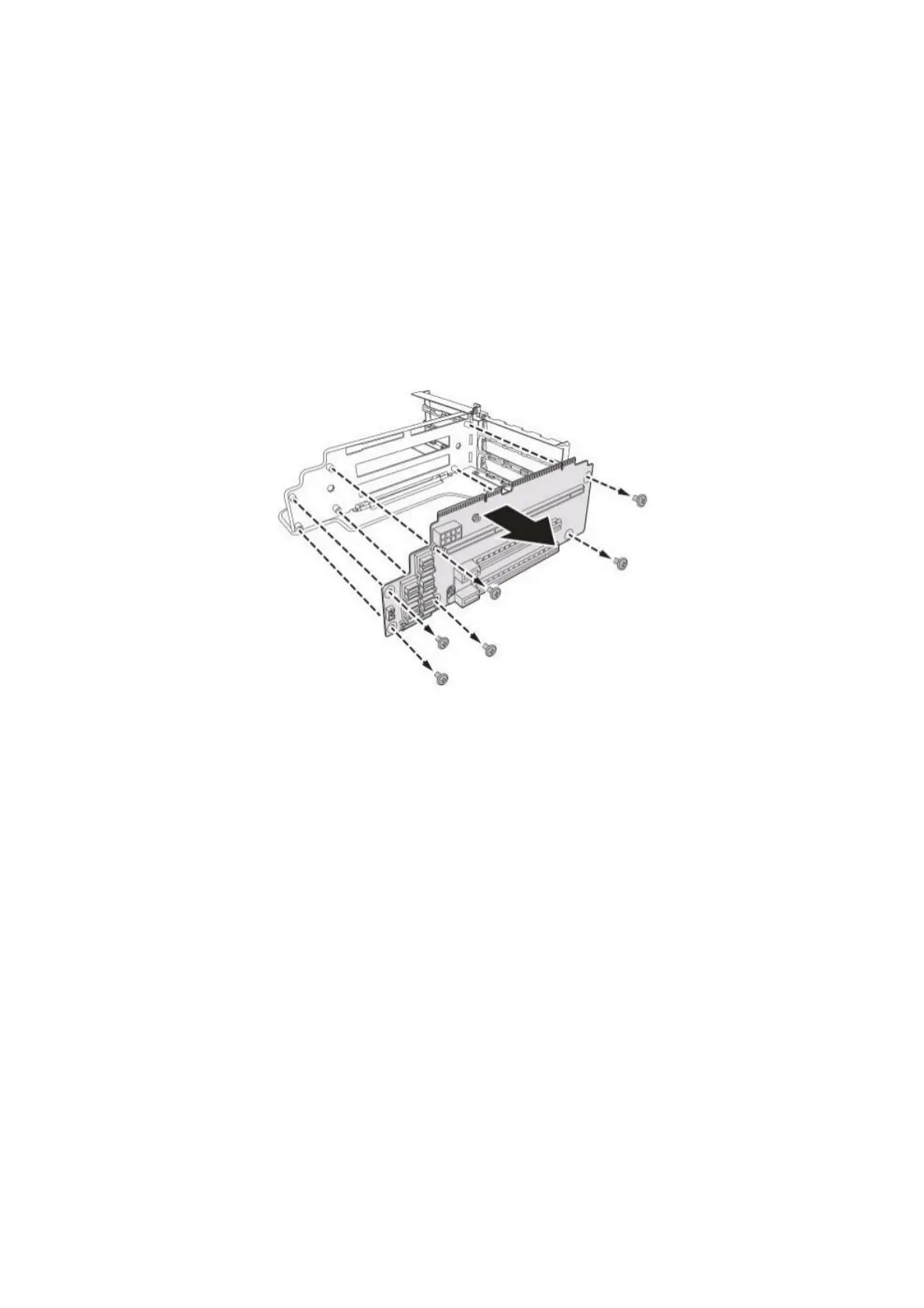

Figure 1-40: Removing the Riser 1 Board

3. To remove another riser 1 board, repeat the previous steps.

1-26
