s
erver
r
Iser
1 a
ssembly
3. Connect the power and Mini SAS HD cables to the riser 1 board connectors. Then
connect the SATA and UART cables to the K2C-AB card connectors.

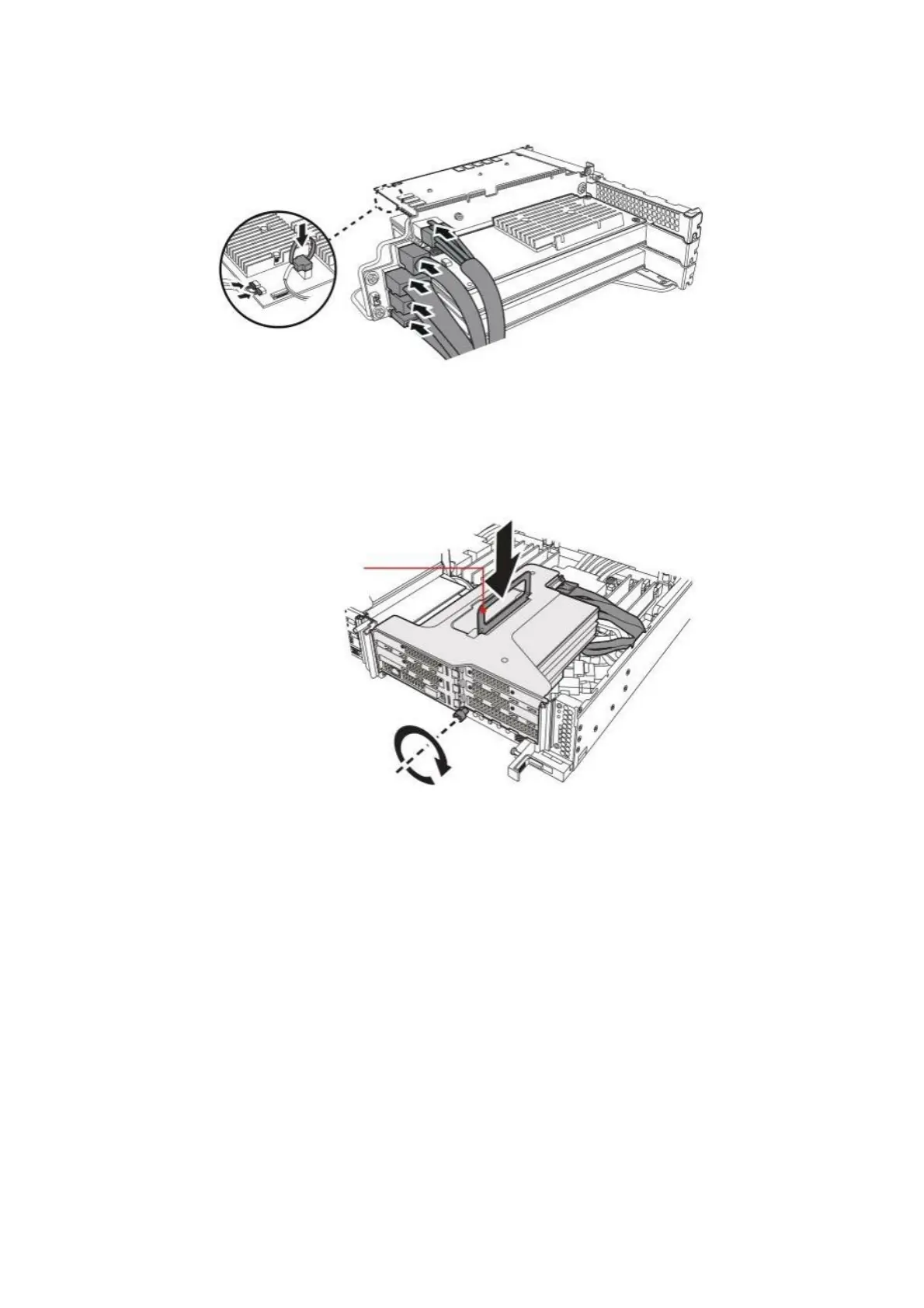

Figure 1-38: Connecting the Cables
4. Align the riser 1 assembly with its slot on the chassis. Then push firmly the
assembly downwards to connect the riser 1 assembly to the mainboard connector.
5. Close the riser 1 assembly holder. Then secure the riser 1 assembly to the
chassis with captive screw.
Riser assembly
holder
Figure 1-39: Installing the Riser 1 Assembly
1-25
