Quanta Computer A5QB - Page 28

s er v e r nvme solId s Ta Te dIsks
6. Slide the SSD assembly forward until it is firmly seated. Then close the retainer
back into place.

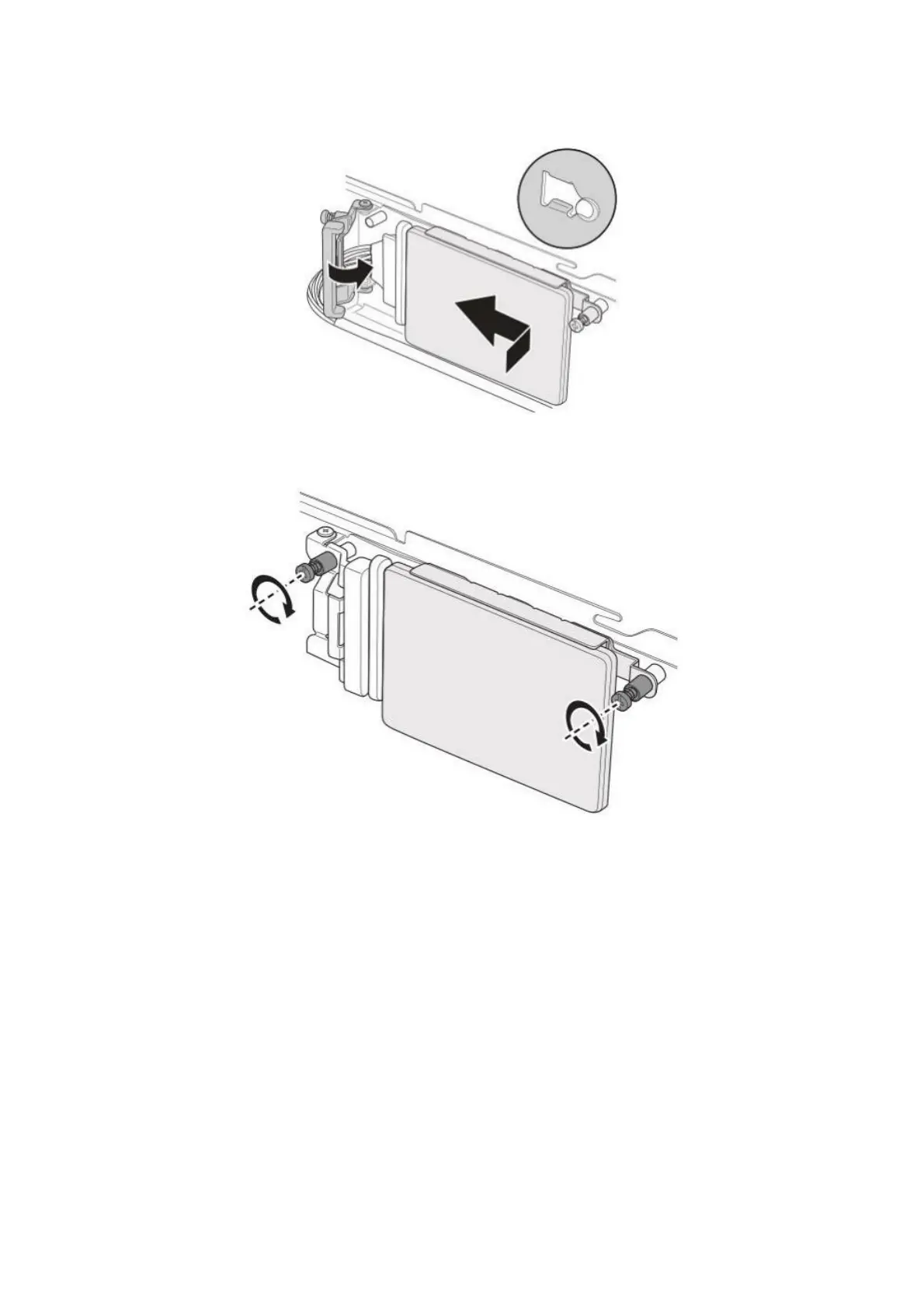

Figure 1-30: Installing the NVMe SSD Assembly
7. Tighten the captive screws to secure the SSD tray to the chassis.
Figure 1-31: Tightening the Screws
8. To install another NVMe SSD, repeat the previous steps.
1-21
