3. Connect the power and Mini SAS HD cables to the riser 2 board connectors. Then
connect the power and UART cables to the K2X-N card connectors.
4. Connect the SATA and power cables to the SSD connectors.

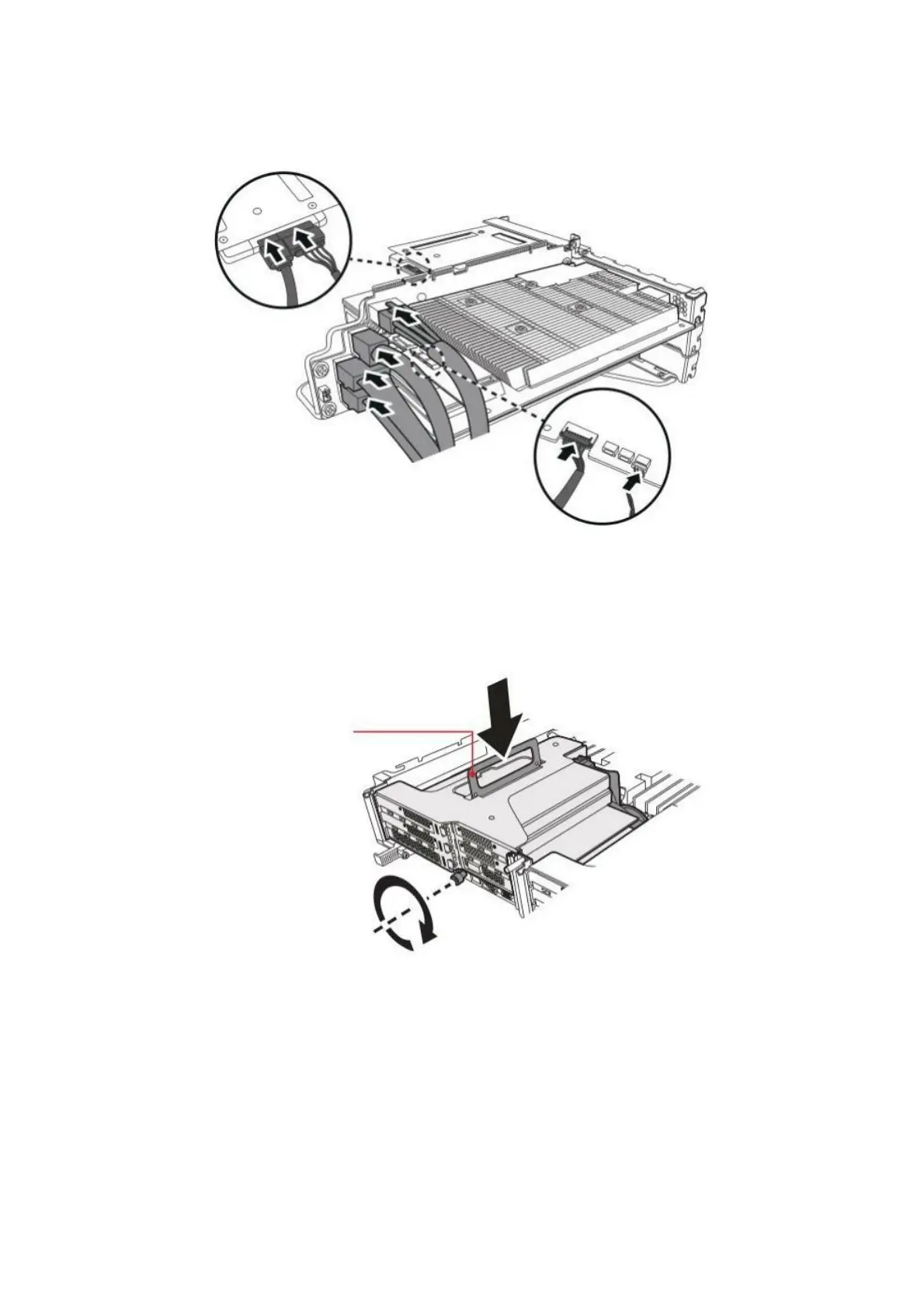

Figure 1-48: Connecting the Cables
5. Align the riser 2 assembly with its slot on the chassis. Then push firmly the
assembly downwards to connect the riser 2 assembly to the mainboard connector.
6. Close the riser 2 assembly holder. Then secure the riser 2 assembly to the
chassis with captive screw.
Riser assembly
holder
Figure 1-49: Installing the Riser 2 Assembly
