7. Remove the Hex nuts and screw securing the busbar power cable lugs to its
respective power terminal stud on the PDB board. Then remove the busbar power
cables and release the busbar power cables from the cable clip.

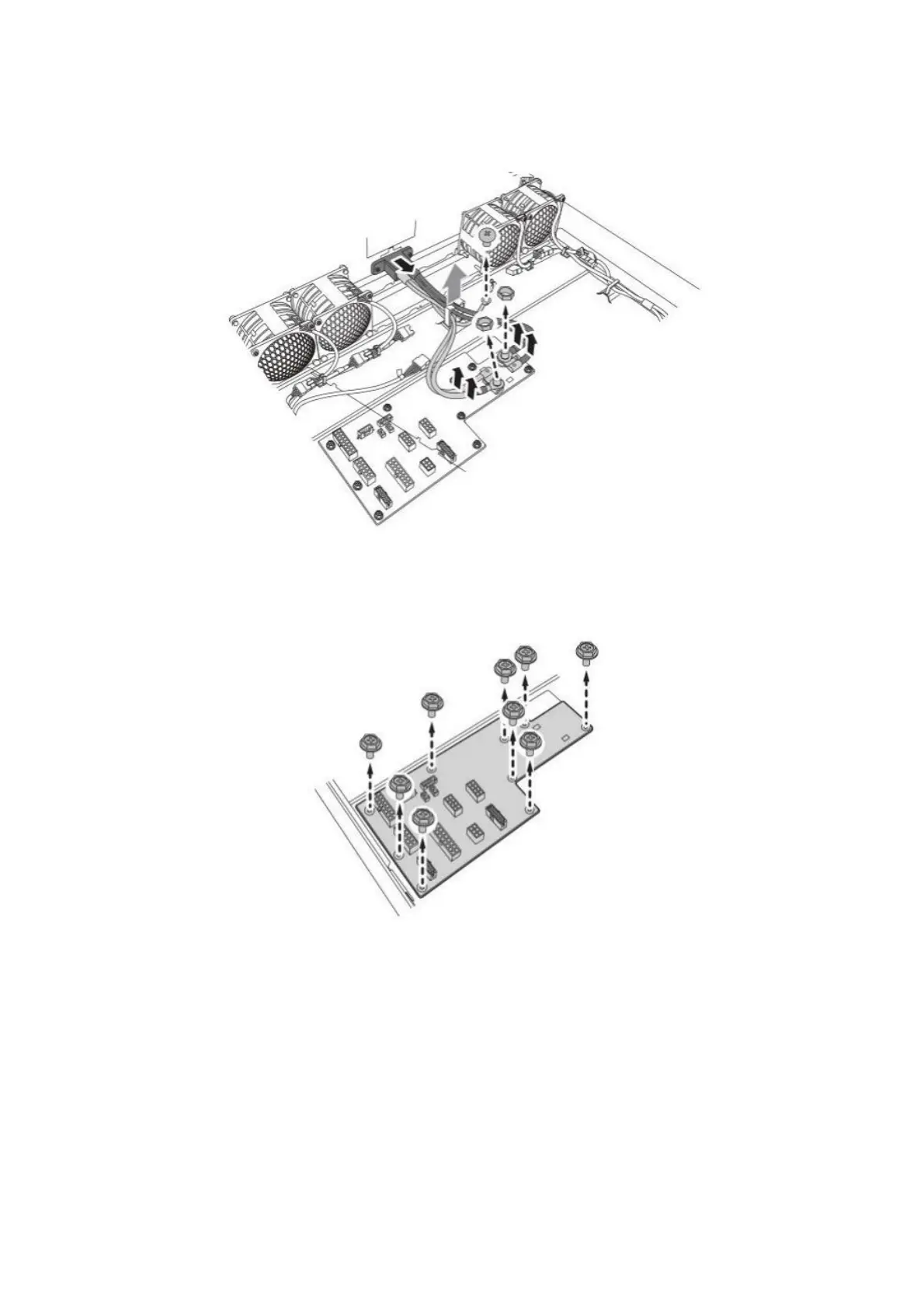

Figure 1-17: Removing the Busbar Power Cables
8. Remove the screws securing the PDB board to the chassis. Then remove the
PDB board.
Figure 1-18: Removing the PDB Board
1-14
