server
fanmodules
2. Remove the fan module assembly from its slot on the chassis. Make sure the
cable of the respective fan module is completely disconnected from the connector.

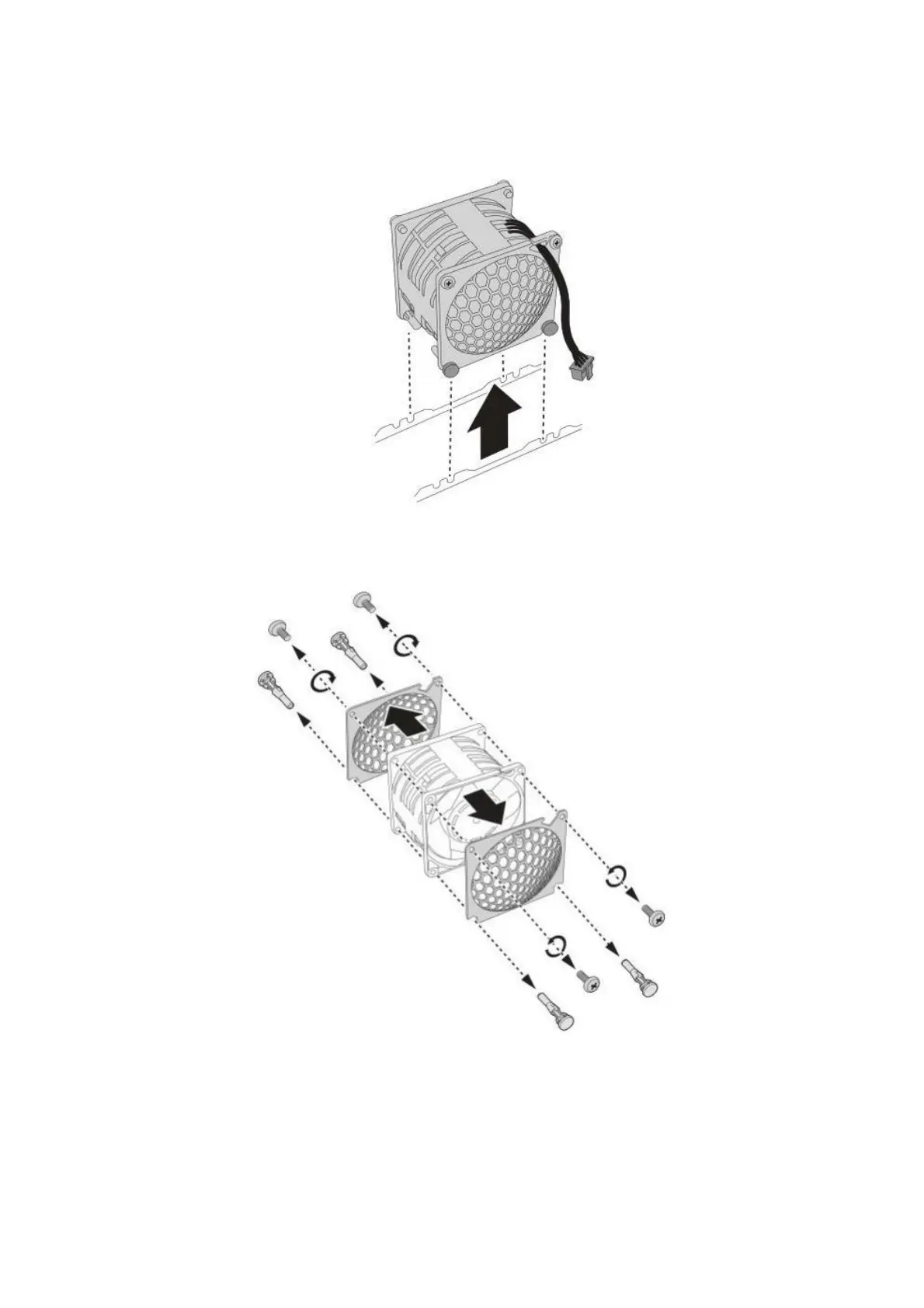

Figure 1-9: Removing the Fan Module Assembly
3. Remove the self-retaining rubber rivets and screws securing the fan cages to the
fan module. Then remove the fan cages.
Figure 1-10: Removing the Fan Cages
4. To remove the remaining fan modules, repeat the previous steps.
1-9
