Revised 3-30-11

Part # ADAPT-GPI StudioHub+ Breakout Adapter

(856) 467-8000

•

Fax (856) 467-3044

•

www.studiohub.com

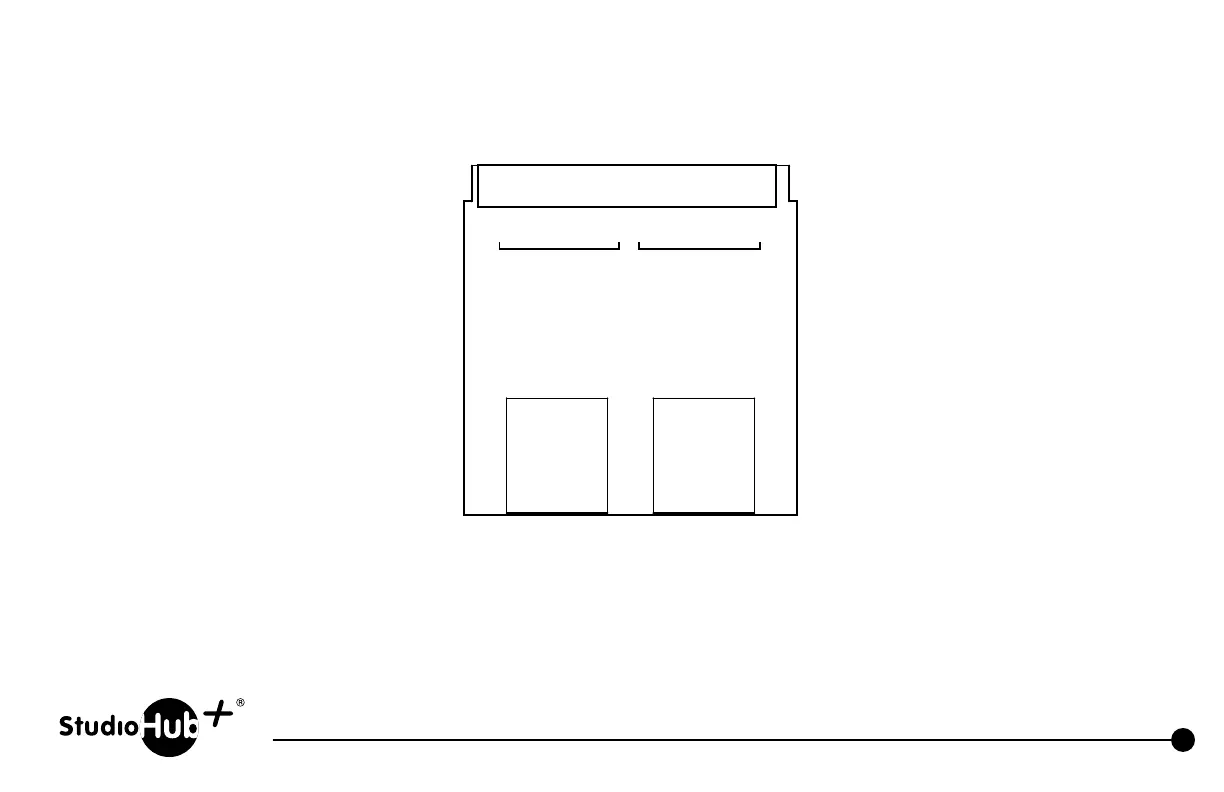

STUDIOHUB+ ADAPT-GPI

••••••••••••••••

RJ-45 #1 (J1)

Pins 1-8

RJ-45 #2 (J2)

Pins 1-8

8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1

RJ-45 ADAPT-GPI Pin Out for

Wheatstone BLade GPIO

RJ-45 Pin1- Audio Ground

RJ-45 Pin2- Logic 7 In/Out

RJ-45 Pin3- Logic 8 In/Out

RJ-45 Pin4- Logic 9 In/Out

RJ-45 Pin5- Logic 10 In/Out

RJ-45 Pin6- Logic 11 In/Out

RJ-45 Pin7- Logic 12 In/Out

RJ-45 Pin8- +5V Digital
