Radio Systems StudioHub+ User Manual

Revised 01-02-13
24

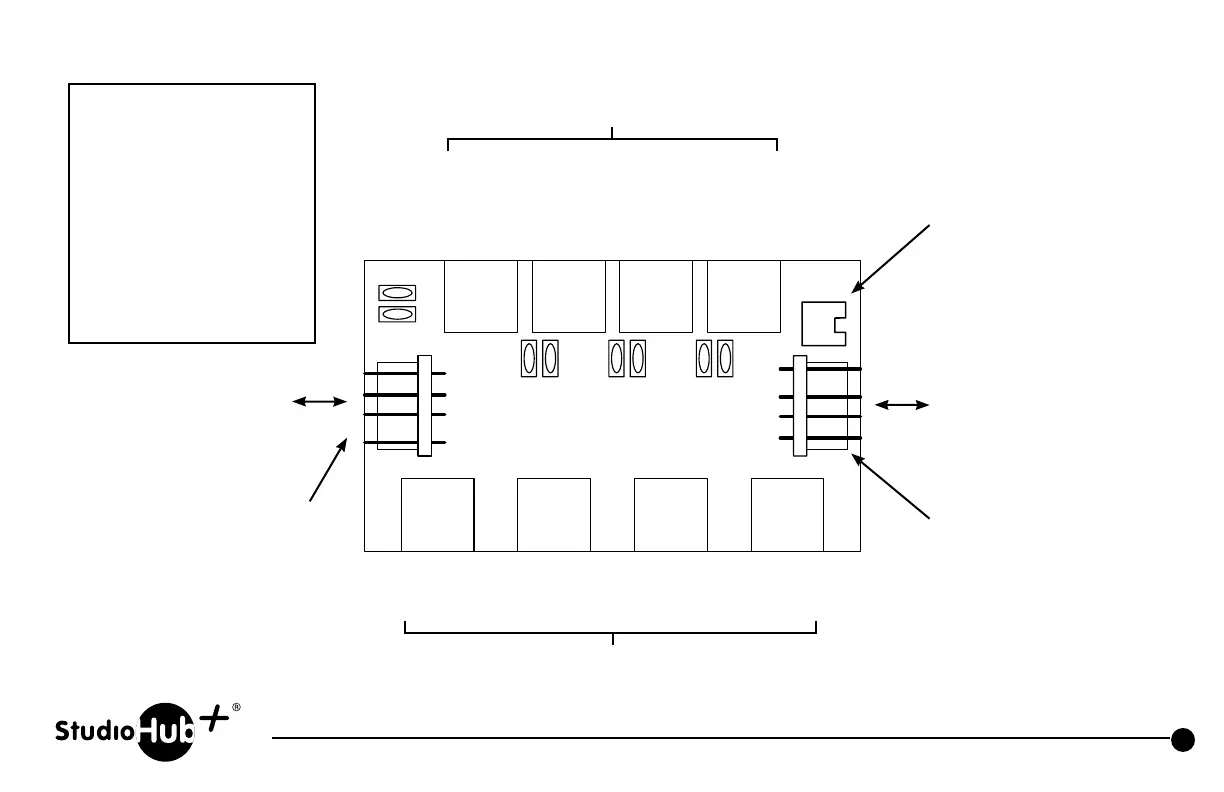

Part # PS-CUBE StudioHub+ “DC-Link” Power Inserter
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
J1 J2 J3 J4
J7 J8 J9 J10
J5
J6
R1
R2
R3 R4 R5 R6 R7 R8
Ch. 1
AudIn
Ch. 2
AudIn
Ch. 3
AudIn
Ch. 4
AudIn
Ch. 1
Aud Out
Pwr Out
Ch. 2
Aud Out
Pwr Out
Ch. 3
Aud Out
Pwr Out
Ch. 4
Aud Out
Pwr Out
+15V
-15V
G
n/c
+15V
-15V
G
n/c
Power Supply
+/-15v In (or) Out.
Max power provided 3 amps.
Power Supply
+/-15v In (or) Out
Max power provided 3 amps.
PS-WW Cube Power Connector.
Allows P/N PS-WWCube or
PS-WWUCube desktop power
supply to provide power.
Max power provided 400 ma.
Loop-Thru Power Connector.
Power supply cable P/N 11516
(1 ft.) required. Contact the
factory to acquire at no charge
if needed.
Notes:
Power is added to audio
connections and available
on the 4 output RJ-45’s (J1-J4).
The four stereo audio feeds
are kept seperated and
isolated.
Channels are independent,
isolated and independently
fused with self resetting
thermal fuses.
Powered-Side Feed to Devices
Non-Powered Input Side
PS-EXTU Power Connector.
Allows P/N PS-EXTU wall-top
power supply to provide power.
Max power provided 3 amps.
