39
Created 9-28-11

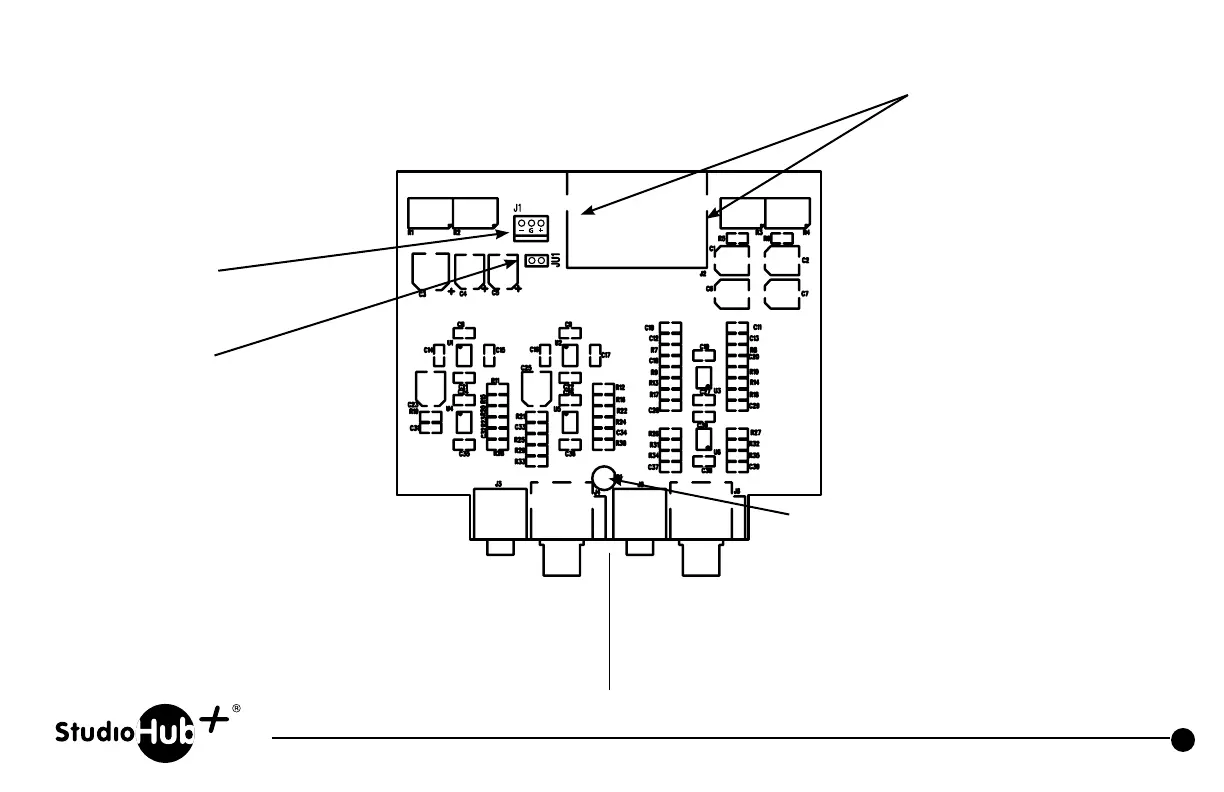

Part # SH-MATCHPANEL StudioHub+ In/Out Balanced Panel
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
J1
Direct power input
+/- 15 volts DC
JU1
Install to connect shield
ground to chassis ground
1/8”
(mini) TRS
Phone IHF
Unbalanced
Input
Left & Right
RCA
IHF
Unbalanced
Input
1/8”
(mini) TRS
Phone IHF
Unbalanced
Output
Left & Right
RCA
IHF
Unbalanced
Output
Power LED
Right Level
Let Level
Right Level
Let Level
Balanced
Output
and
Power
Balanced
Input
and
Power
Audio in and out and StudioHub+
“DC-Link” +/- 15VDC power
provided on RJ-45’s
