Radio Systems StudioHub+ - Sh-1;4 Bal

20
Revised 4-21-10
ASSEMBLY 12007
STUDIOHUB+
1/4" AND MINI TRS
JU1
J4J3
J6
J5
J2
J1

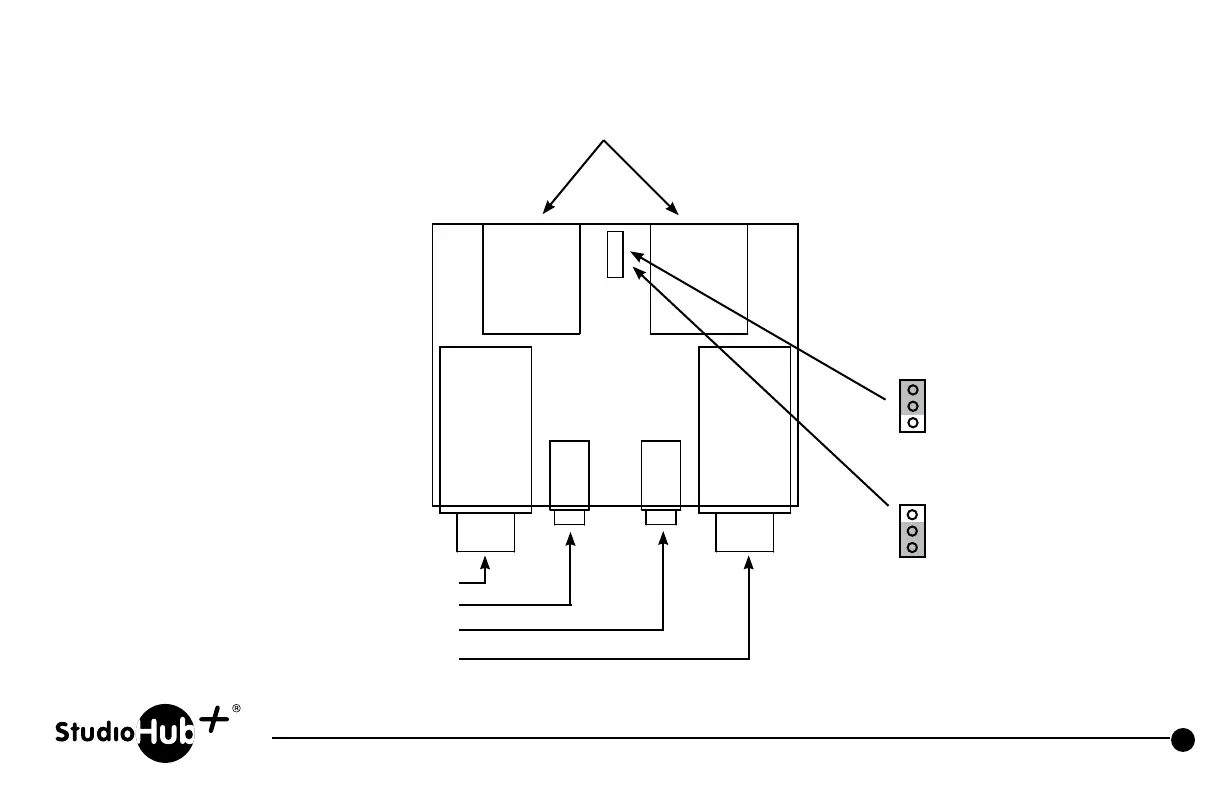

Part # SH-1/4BAL StudioHub+ 1/4” & Mini TRS Panel (Balanced)
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
1/4” TRS & mini TRS, (J3/J4 and
J5/J6) are in parallel. Use only one
at a time.
Left balanced 1/4”TRS
Left balanced mini TRS
Right balanced mini TRS
Right balanced 1/4” TRS
1/4” mini TRS
(J3, J4, J5, J6) wiring
Tip = +
Ring = —
Sleeve = See JU1 pinouts below
JU1 (upper pins)
Install to connect sleeve of
all 1/4” and mini jacks to
StudioHub+ RJ45 shield
JU1 (lower pins)
Install to connect sleeve of
all 1/4” and mini jacks to
StudioHub+ RJ45
power ground
2 Stereo StudioHub+ RJ45(s) in parallel
