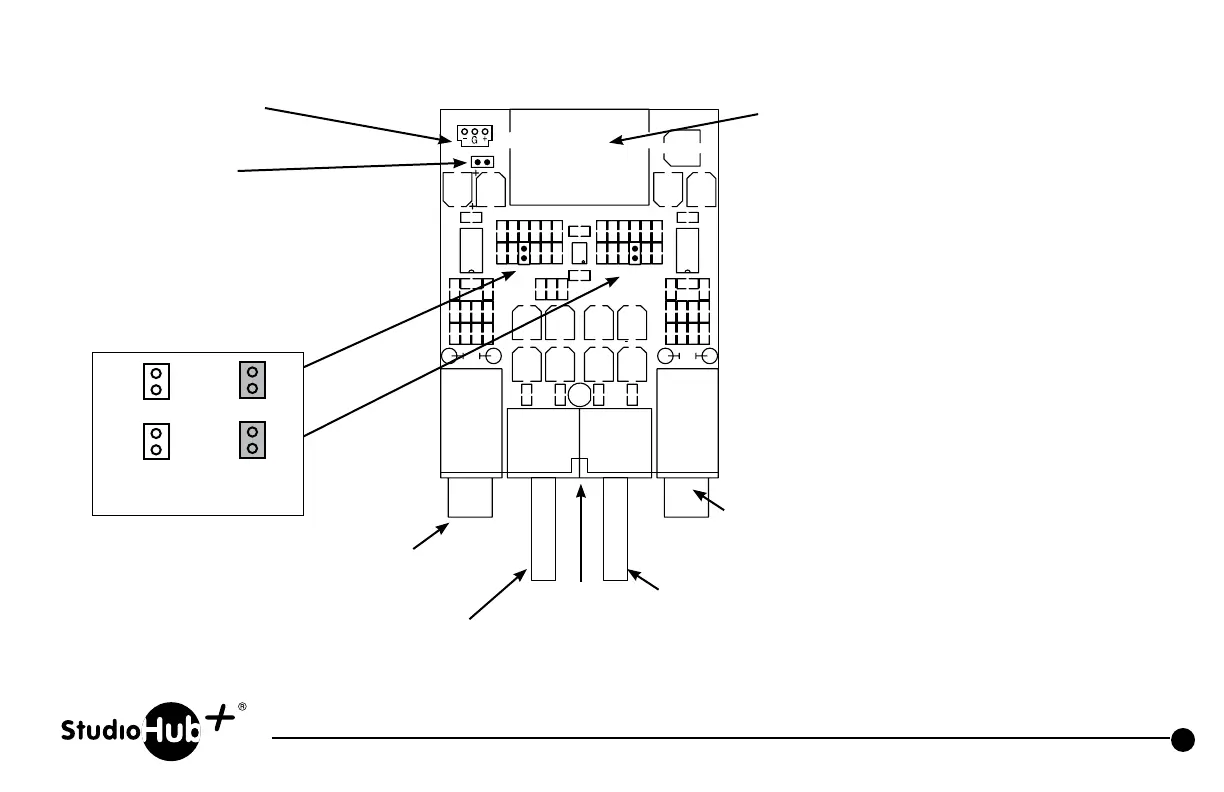

Gain Jumper Settings (added 3/17)
JU2
JU3
17.3dB 7.4dB
Gain Gain
Revised 11-23-16
JU1
JU2
JU3
J1
J3 J4
30
Part # SH-HPDUAL StudioHub+ Headphone Amplifier Dual Plate
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
J2 Two StudioHub+ RJ45
input and power on
connectors in parallel
J1 Direct power input
+/- 15 volts DC
Power
LED
Headphone level
HP AMP #1
Headphone level
HP AMP #2
1/4” headphone jack
HP AMP #2
JU1
Install to connect shield
ground to power ground
1/4” headphone jack
HP AMP #1
StudioHub+ Heaphone Amplifier
Dual Output Version
RJ-45 input jacks remain in
parallel (there is only 1 input.)
Each output is isolated and
at full power (with separate
output amplifier chips.)
Current consumption is 100ma.
All other specifications are
identical to single (SH-HP) model.
30
