Radio Systems StudioHub+ User Manual

38
Revised 4-21-10
Part # SH-DUALMATCH StudioHub+ In/Out Balanced Panel
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com

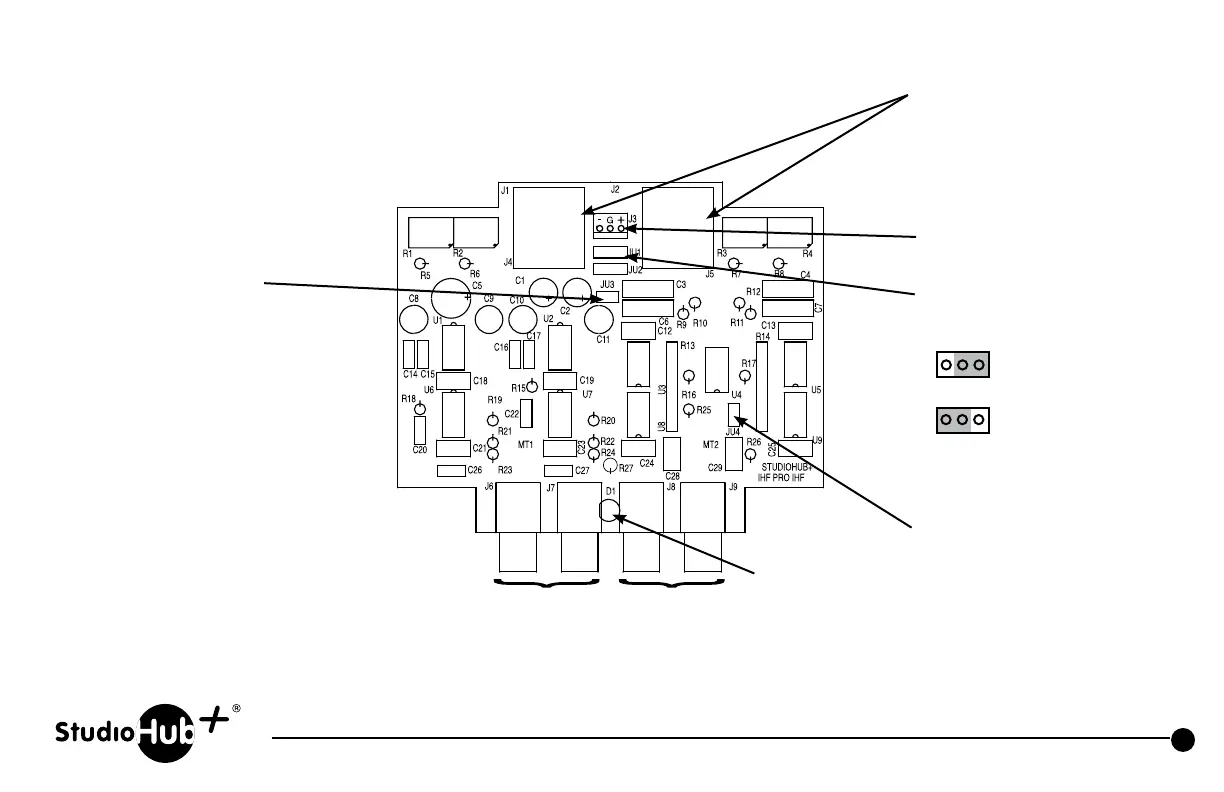

JU3
Install to connect shield
ground to chassis ground
J3
Direct power input
+/- 15 volts DC
JU1 and JU2
(install both the same)
Board power
from J5
Board power
from J4
JU4
Install to connect shield
ground to power ground
Left Right
Left Right
IHF Unbalanced Input IHF Unbalanced Output
Power LED
Right Level
Let Level
Right Level
Let Level
Balanced
Output
and
Power In
Balanced
Input
and
Power In
Audio in/out and power input
provided on RJ-45’s
