Radio Systems StudioHub+ User Manual

32
Revised 4-21-10
2 StudioHub+ RJ45 Input and
power in connectors in parallel
JU1
Install to connect shield
ground to power ground
JU2
Install to connect shield
ground to chassis ground
JU4, JU5 Gain Straps
Unity +10dB +20dB
Gain
JU7 Mono - Stereo jumper
Stereo operation
Mono operation
Left output is a mix of left and
right inputs. Right output is muted

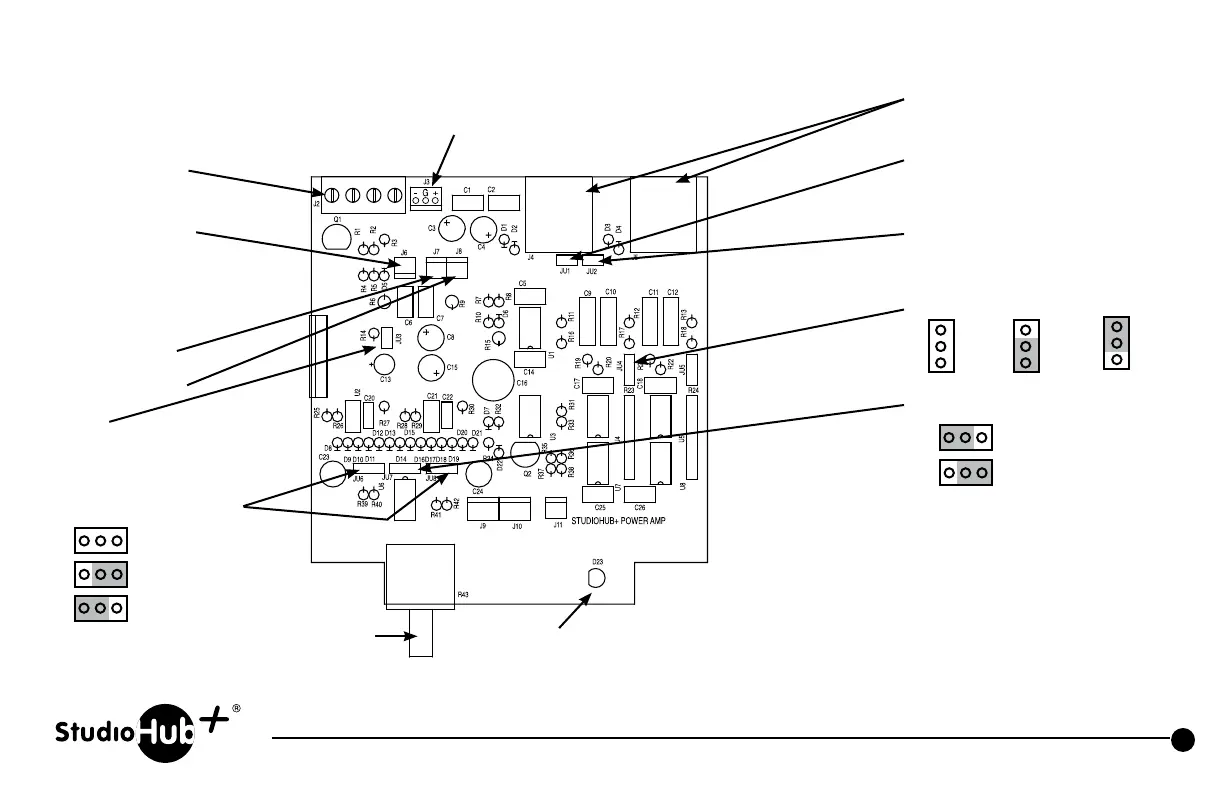

StudioHub+ Monitor Amp Panel
Part # SH-AMP w/o Speaker
Part # SH-AMPSPKR w/Speaker
(Accessory Speaker) StudioHub+ Speaker
Part # SH-SPKR
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
JU6 Mute
Short these pins
together to mute
J7 Left speaker
J8 Right speaker
JU3
Install for stereo operation
JU6 and JU8 Power limit
Full power
Medium power
Low power
Signal
Present
LED
Level control
Direct power in
+/- 15 volts DC
Speaker Outputs
L
e
f
t
G
r
o
u
n
d
G
r
o
u
n
d
R
i
g
h
t
