Radio Systems StudioHub+ User Manual

StudioHub+ Amp w/Headphone
Part # SH-AMPHPN
StudioHub+ Speaker
Part # SH-SPKR
Revised 8-02-17
33

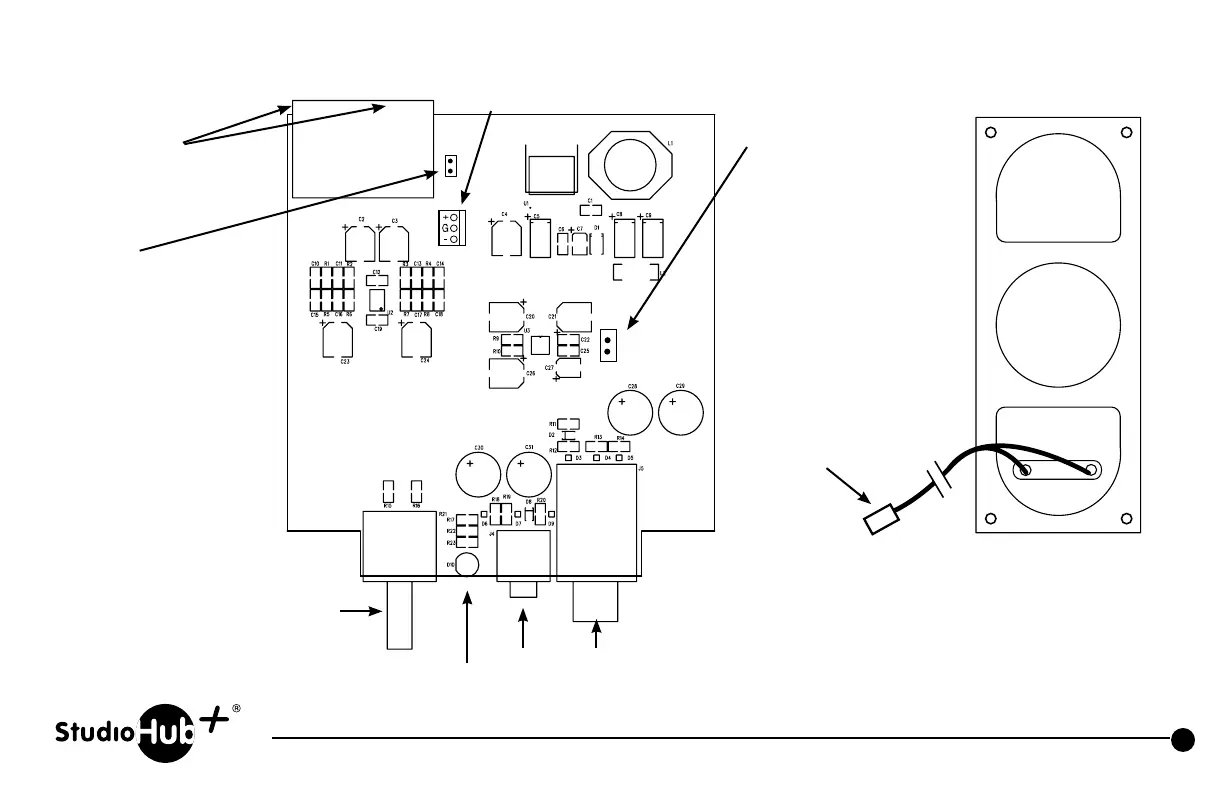

JU1
J2
J1
J3
JU1
Install to
connect RJ-45
power ground
to chassis ground
J3
Speaker out
(floating output -
DO NOT GROUND)
16” MTE connector
J1
2 StudioHub+ RJ45
Input and power in
connectors in parallel
Power LED
Level control
1/4” Headphone Output
1/8” Headphone Output
(both connectors mute speaker output)
}
in parallel
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
J2
Direct power input
+/- 15 volts DC
