29
Revised 11-23-16
(Note - There are older versions of this product.
See www.studiohub.com/legacy.php)
JU1
JU2
JU3
J3
J1 J2
J5

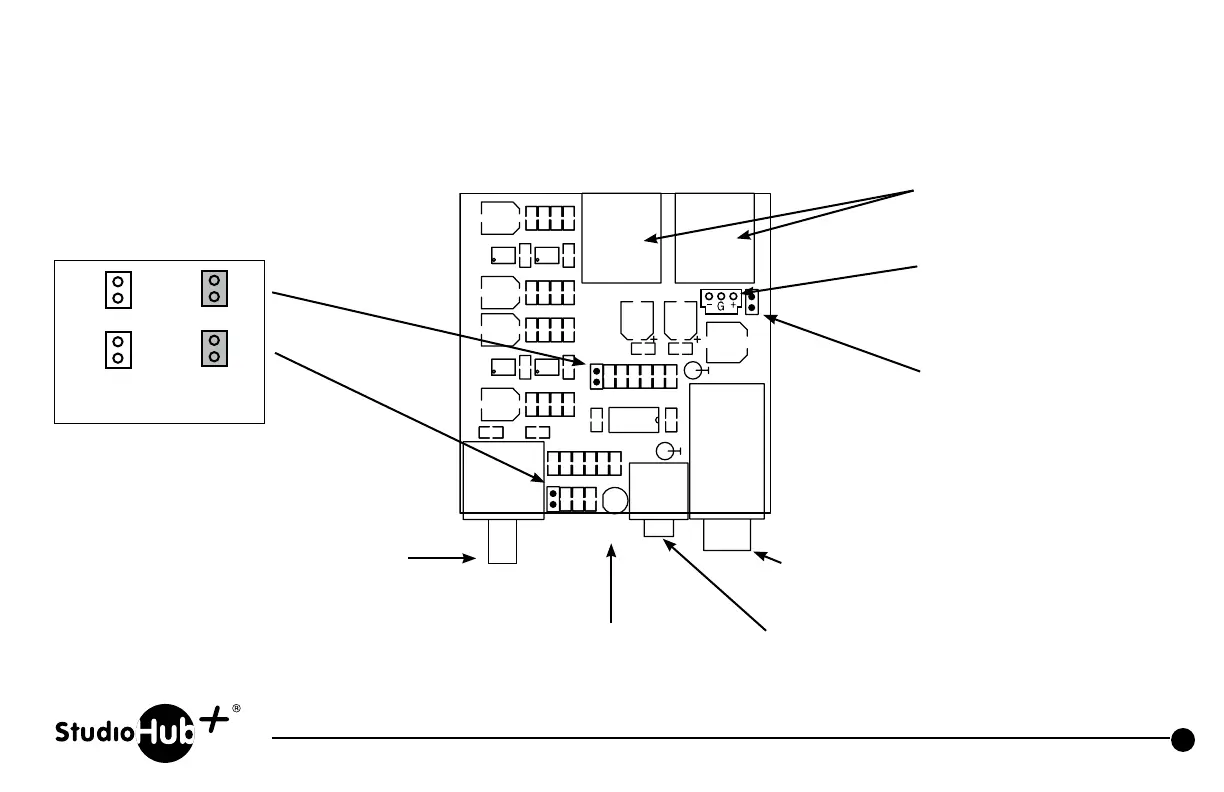

Part # SH-HPB StudioHub+ Headphone Amplifier Panel
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
2 StudioHub+ RJ45
input and power on
connectors in parallel
Direct power input
+/- 15 volts DC
Blue Power LED
Headphone level
1/4” headphone jack
JU1
Install to connect shield
ground to power ground
Gain Jumper Settings (added 3/17)
1/8” (mini) headphone jack
JU2
JU3
17.3dB 7.4dB
Gain Gain
