31
Revised 4-21-10

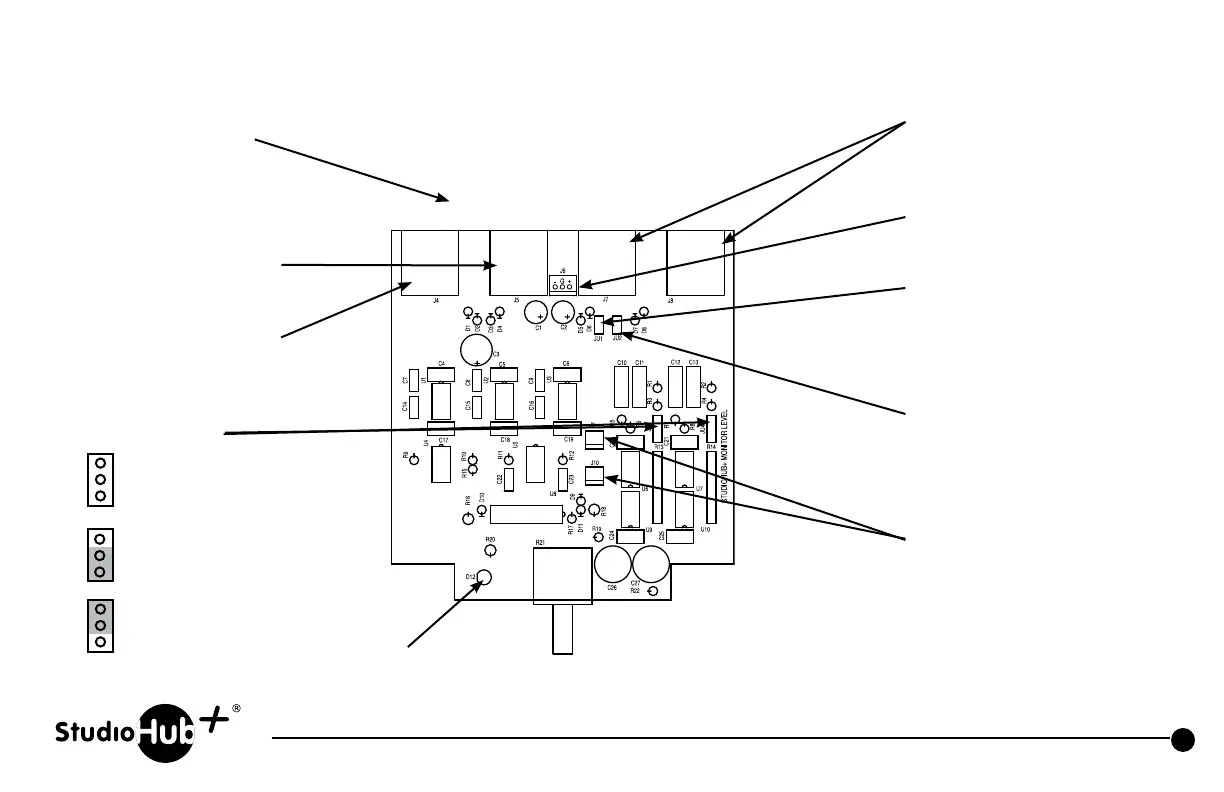

Part # SH-LEVEL StudioHub+ Monitor Level Control Panel
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
Stereo StudioHub+ RJ45(s)
stereo output and power in
Stereo StudioHub+ RJ45(s)
mono output and power in
Level
Power LED
2 StudioHub+ RJ45
input and power in
connectors in parallel
Direct power input
+/- 15 volts DC
JU1
Install to connect shield ground
and power ground
JU2
Install to connect shield ground
and chassis ground
JU9, JU10
2 mute control connectors in
parallel. Short the pins on either
connector together for mute
JU3, JU4 gain select
Unity -
no jumper
+10dB
+20dB
Audio and power input
provided on barrier strip
To Next Page
