Radio Systems StudioHub+ User Manual

34
Revised 4-21-10

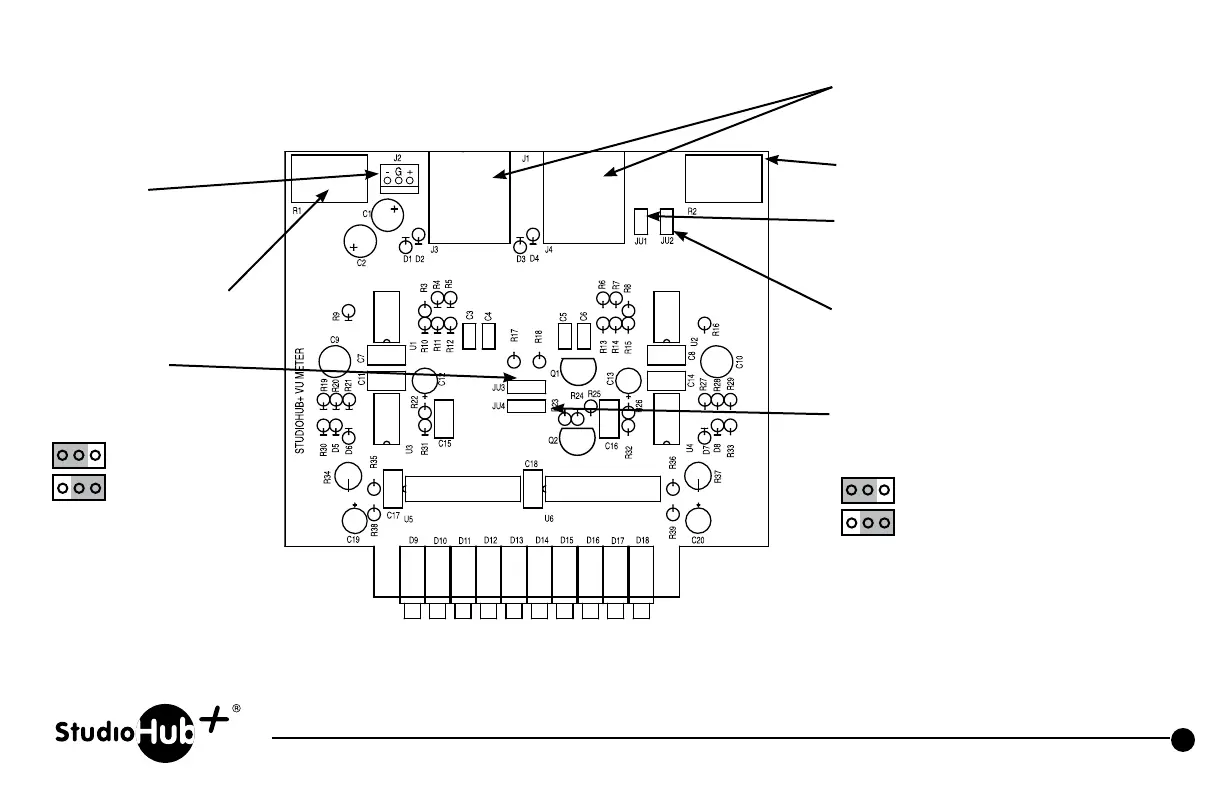

Part # SH-VUV Dual VU Meter Panel (Vertical)
Part # SH-VUH Dual VU Meter Panel (Horizontal)
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
JU3
Top row/left row
LED input select.
Left input
Right input
JU1
Install to connect shield
ground to power ground
JU2
Install to connect shield
ground to chassis ground
2 StudioHub+ RJ45
Input and power in connectors
in parallel
Bottom row/right row LED
level control
Top row/right row LED
level control
Direct power input
+/- 15 volts DC
JU4
Bottom row/right row LED
input select
Right input
Left input
