35
Revised 4-21-10
No jumper for unity gain
normal for +4dBu applications
+10dB gain
+20dB gain

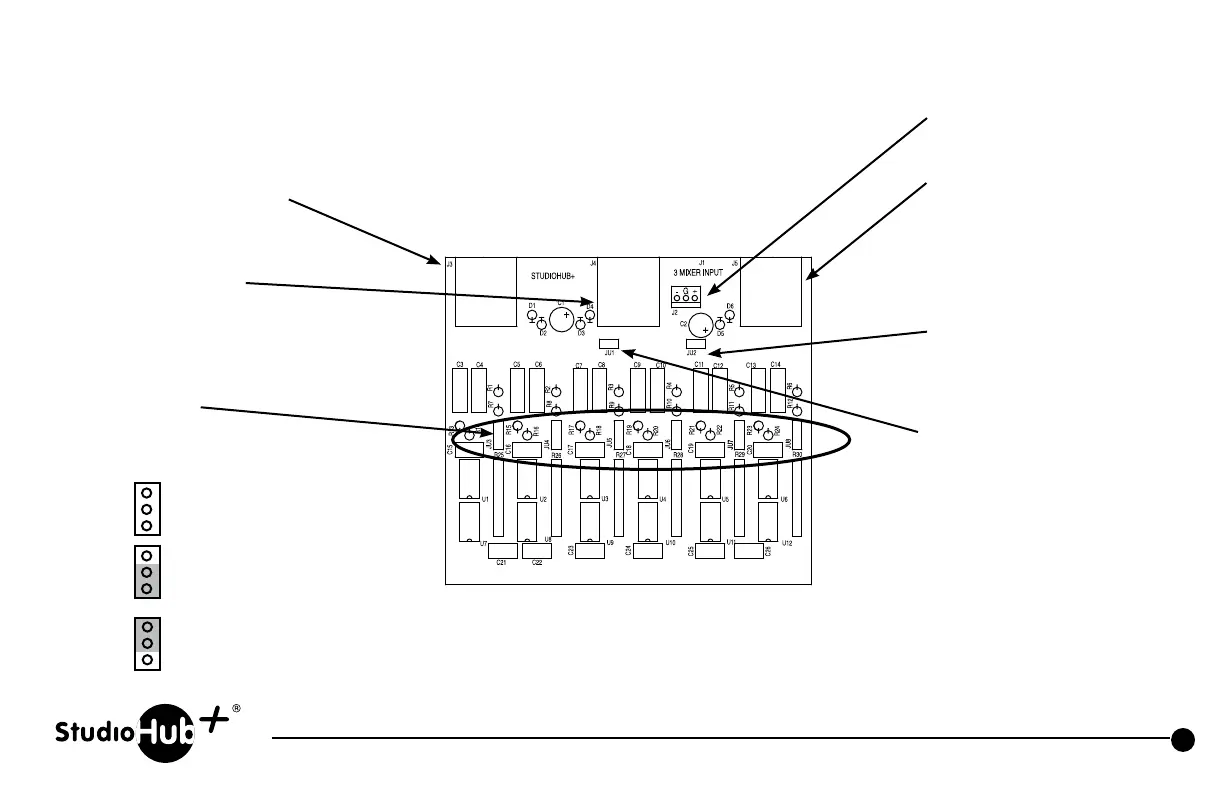

Part # SH-MIXER StudioHub+ 3 Mixer Panel (Input Board)
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
StudioHub+ RJ45
input 1 and power in
Stereo StudioHub+ RJ45
input 2 and power in
Gain Straps (pre-fader)
JU3, JU4 Input 1
JU5, JU6 Input 2
JU7, JU8 Input 3
Direct power input
+/- 15 volts DC
StudioHub+ RJ45
Input 3 and power in
JU1
Install to connect shield
ground to power ground
JU2
Install to connect shield
ground to chassis ground
