3
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
StudioHub+

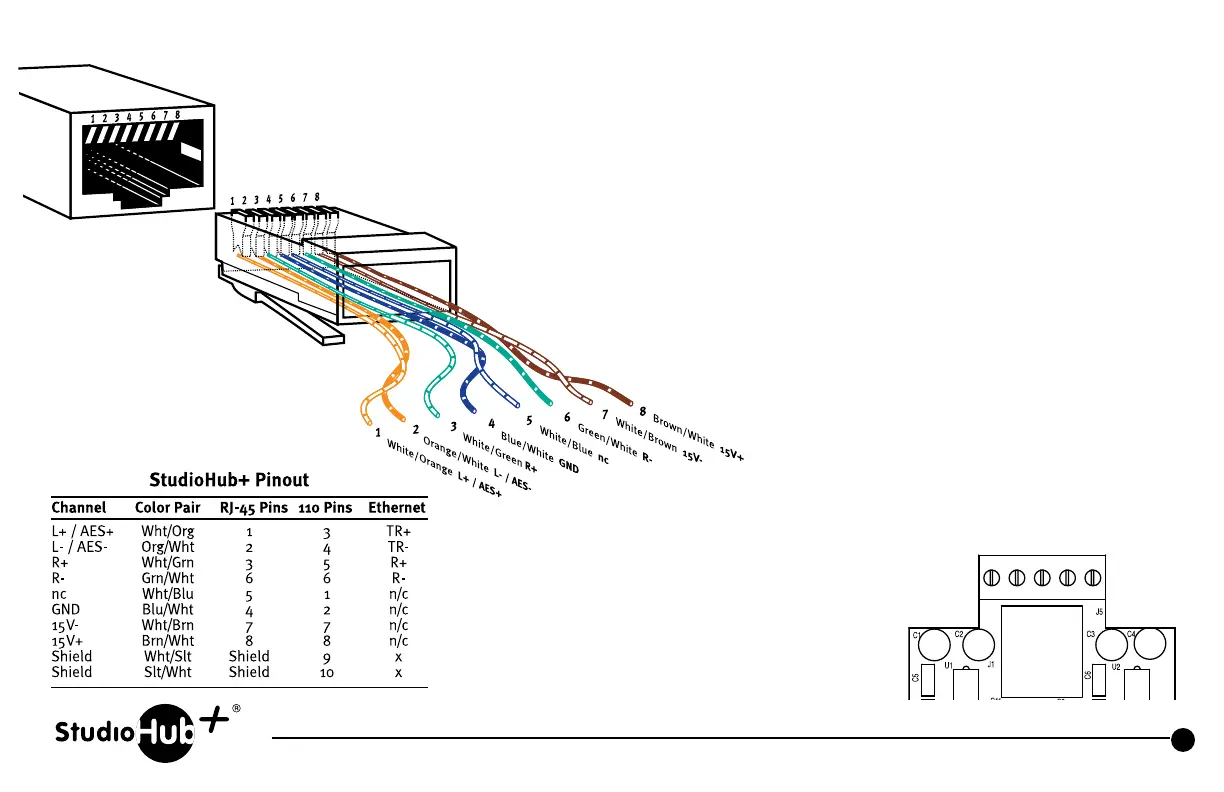

Standard Pinout
(T568B Standard)
Current consumption for each StudioHub+ active device. Refer to this list
when calculating the total number of devices that can be run together
on any individual power supply.
Part # Description Current
MJ-OUT Analog MatchJack Out (IHF to Pro) 75ma
MJ-IN Analog MatchJack In (Pro to IHF) 35ma
MJ-SPDIFOUT SPDIF OUT (S/PDIF and Optical to AES) 100ma
MJ-SPDIFIN SPDIF IN (AES to S/PDIF) 0 (passive)
MJ-AD Digital MatchJack A to D 150ma
MJ-DA Digital MatchJack D to A 150ma
MJ-DDA Digital MatchJack Distribution Amplifier 165ma*
SH-DUALMATCH Dual Match Panel 100ma
SH-HP Headphone Panel 100ma
SH-MIC Mic Pre-Amp Panel 55ma
SH-MIXER 3 Input Stereo Mixer with mix-minus 125ma
SH-AMPSPKR Monitor Amp Panel (w/ Speaker) 1400ma
SH-LEVEL Monitor Panel 145ma
SH-VUV Dual VU Meter Panel 150ma
SH-LCDV LCD Display Panel 75ma
DA6-DC DA Hub (Single) 575ma
SUM4-DC Combiner Hub (Single) 175ma
+-G-+
Stand-Alone Versions
Some active StudioHub+ products were
previously available in “Stand-Alone”
versions with barrier strip connectivity for
audio I/O. The following illustrates the
pinout for this barrier strip.
* Powered via 9v DC (single ended) wall wart
or +/-15vDC StudioHub+ power supply
