16
Revised 4-21-10
(Note - There is a stereo only version of this product.
See www.studiohub.com/legacy.php)
STUDIOHUB+
F XLR TO RJ45
JU4JU3
JU1
JU2
J1
J2

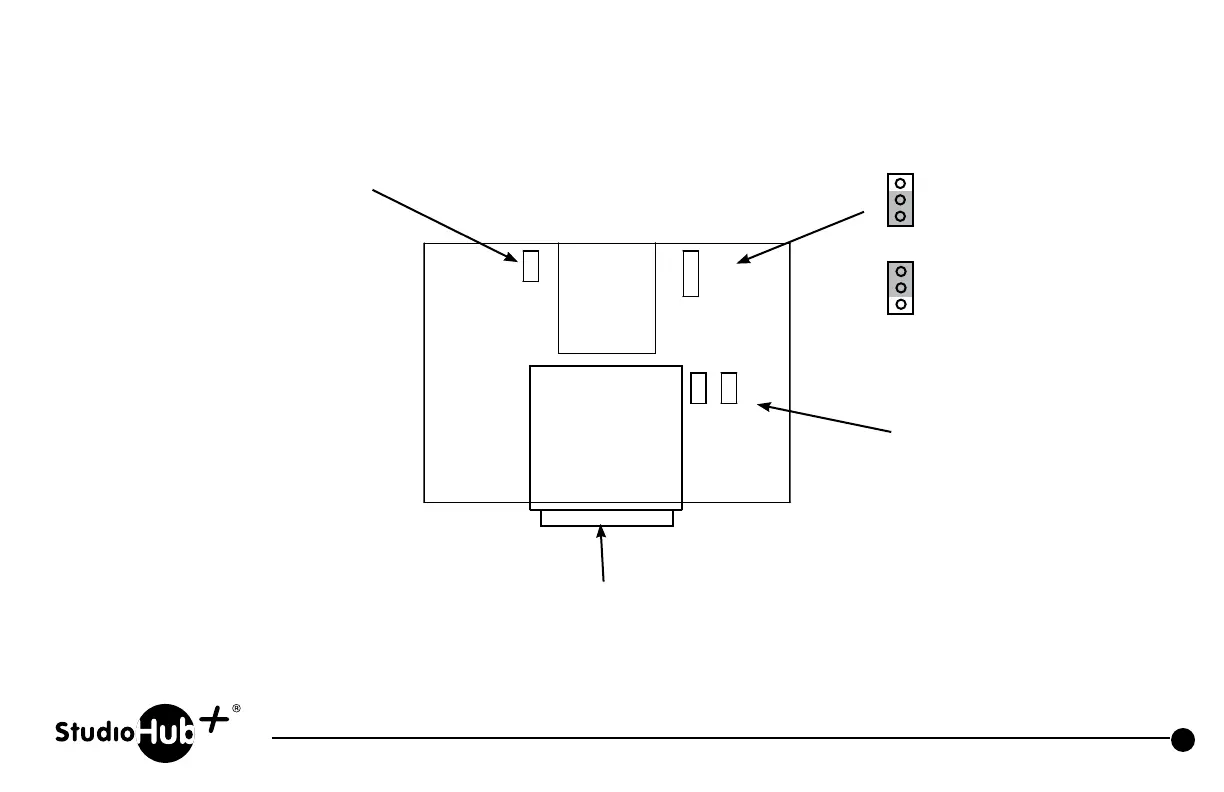

Part # SH-1XLRF StudioHub+ Single XLR Female Panel
(856) 467-8000
•
Fax (856) 467-3044
•
www.studiohub.com
JU1
Install to connect XLR pins to chassis ground
JU2
Install to connect XLR pins to
power ground
Install to connect XLR pin 1 to
shield ground
JU3, JU4
Install for left and right in parallel
Remove for left only
XLR
