PCMx Operation Manual
© 2021 Radiodetection Ltd 15

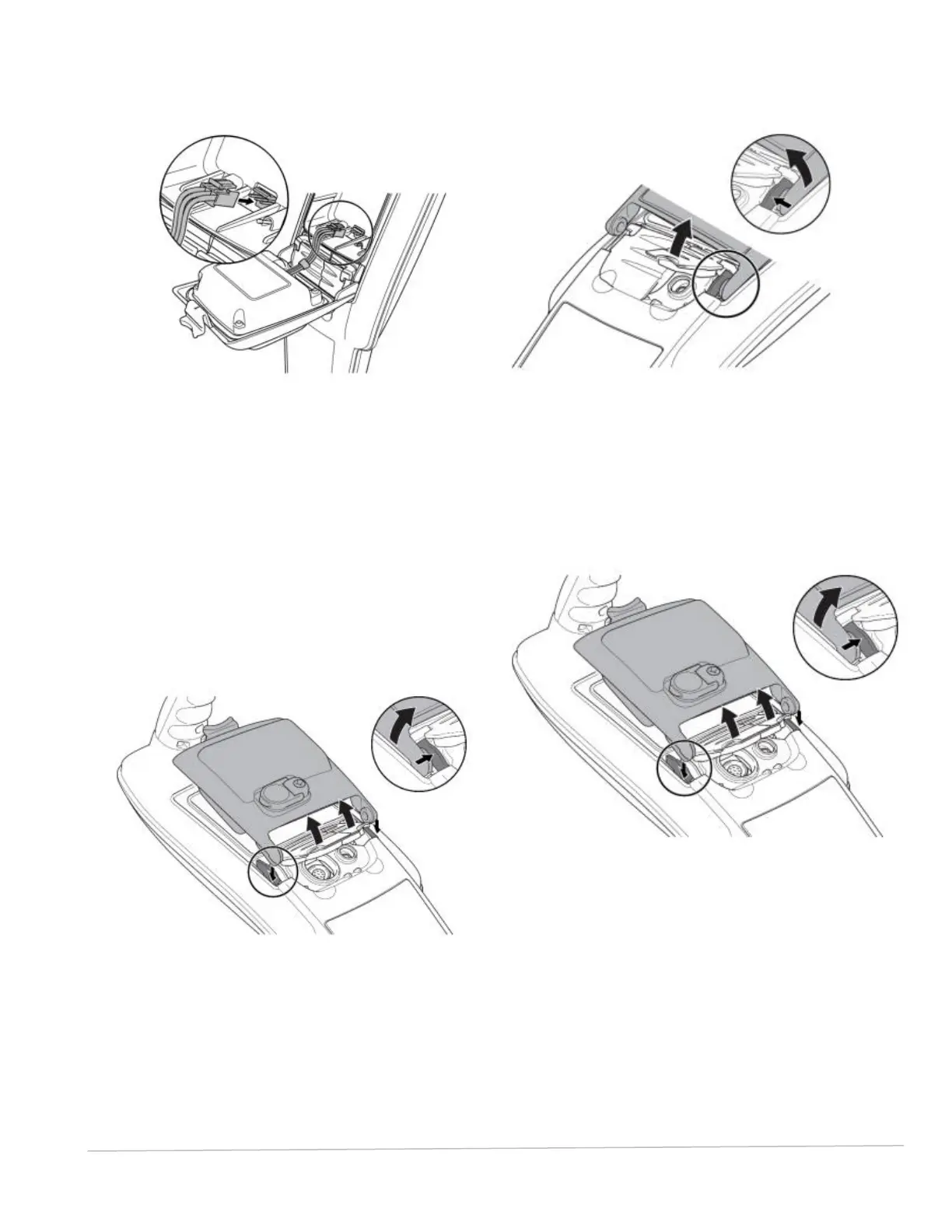

Fig. 4.5: Li-ion battery pack connection
Note: Fully charge your lithium-ion battery pack before its
first use
Removing Battery Pack
1. Open the battery compartment using the release
catch (figure 4.4)
2. If using a Li-ion battery pack un-plug the lead
connector (see figure 4.5)
3. Lift the accessory cover slightly and press the battery
retaining latch inwards. (See figure 4.6)
Fig. 4.6: Press the retaining latch inwards
4. Rotate the battery pack away and up from the latch
5. Repeat on the other side to release the battery pack
completely then lift the battery pack away (figure 4.7)
Fig. 4.7: Repeat then lift the battery pack away
To fit a new battery, lift both accessory covers slightly,
then gently push the replacement pack into place until it
clicks on both sides, then close the battery pack (figure
4.6).
Fig. 4.8: Installing a new battery pack
Using the D-cell locator battery holder
To fit a D-cell battery tray, lift both accessory covers
slightly, then gently push the battery tray into place until it
clicks on both sides, then close the battery tray (figure 4.9)
