14
IQ Network Communication Cartridge
b
NOTE: The Y-cable has a DB9 connector that will not
t through the knockout. Route the small end of the
cable through the bottom of the knockout rst, then
connect to the CM Port.
b
NOTE: The IQ-NCC-GP cartridge requires a SIM card
and GPRS/cellular telemetry service account that is
not provided and must be purchased separately. See
the SIM Card Installation section in the Appendix for
details.
D

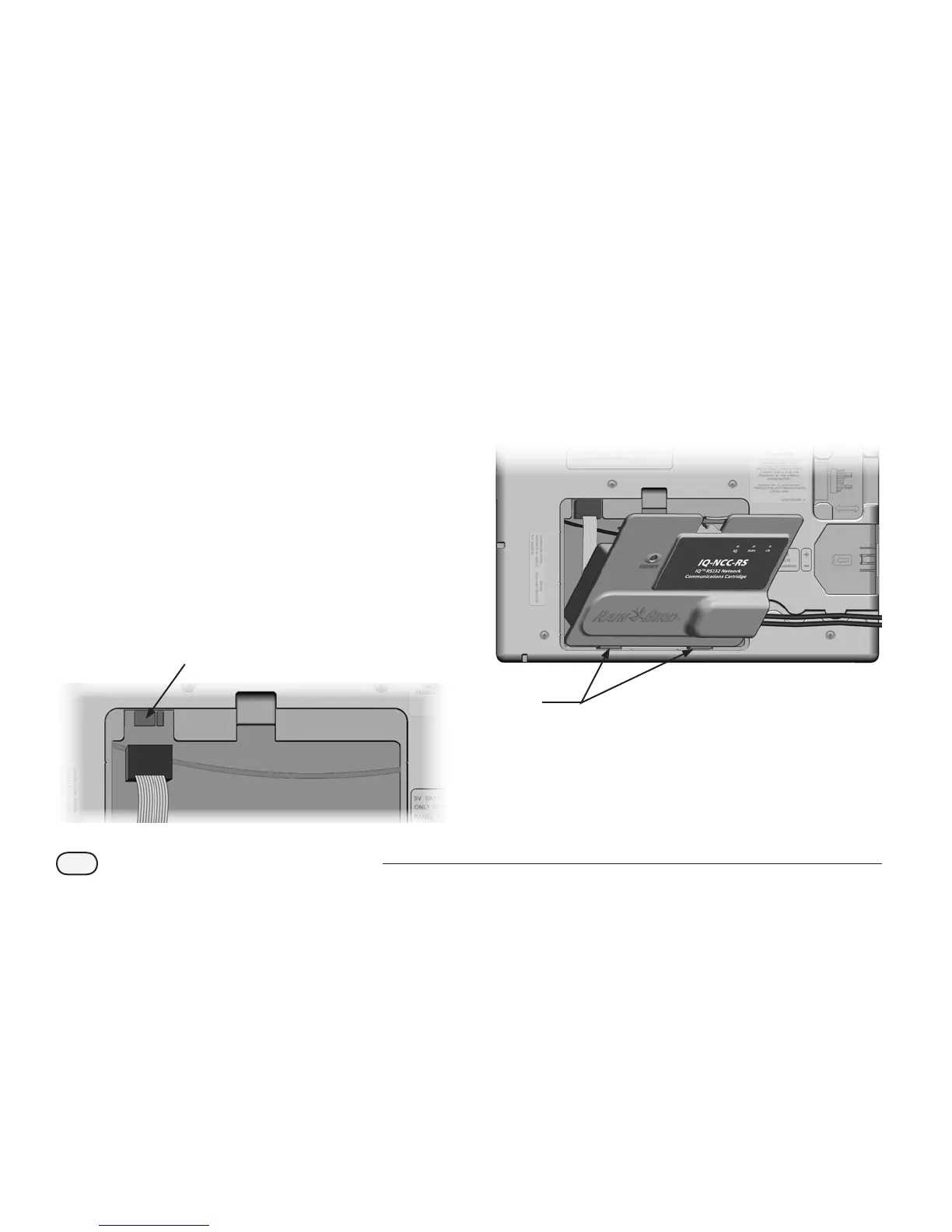

Connect the cartridge ribbon cable to the card-edge
connector located at the top left of the cartridge bay.
d
CAUTION: Ensure that the RED edge of the ribbon
cable is towards the LEFT side of the connector.
4
E
Orient the cartridge so that the two bottom hinges t
into the hinge openings at the bottom of the cartridge
bay. Then gently swing the IQ-NCC up into place,
snapping the top latch.
5
