Best Signal Selection
R&S XU 4200
3.91
6166.5368.02.01

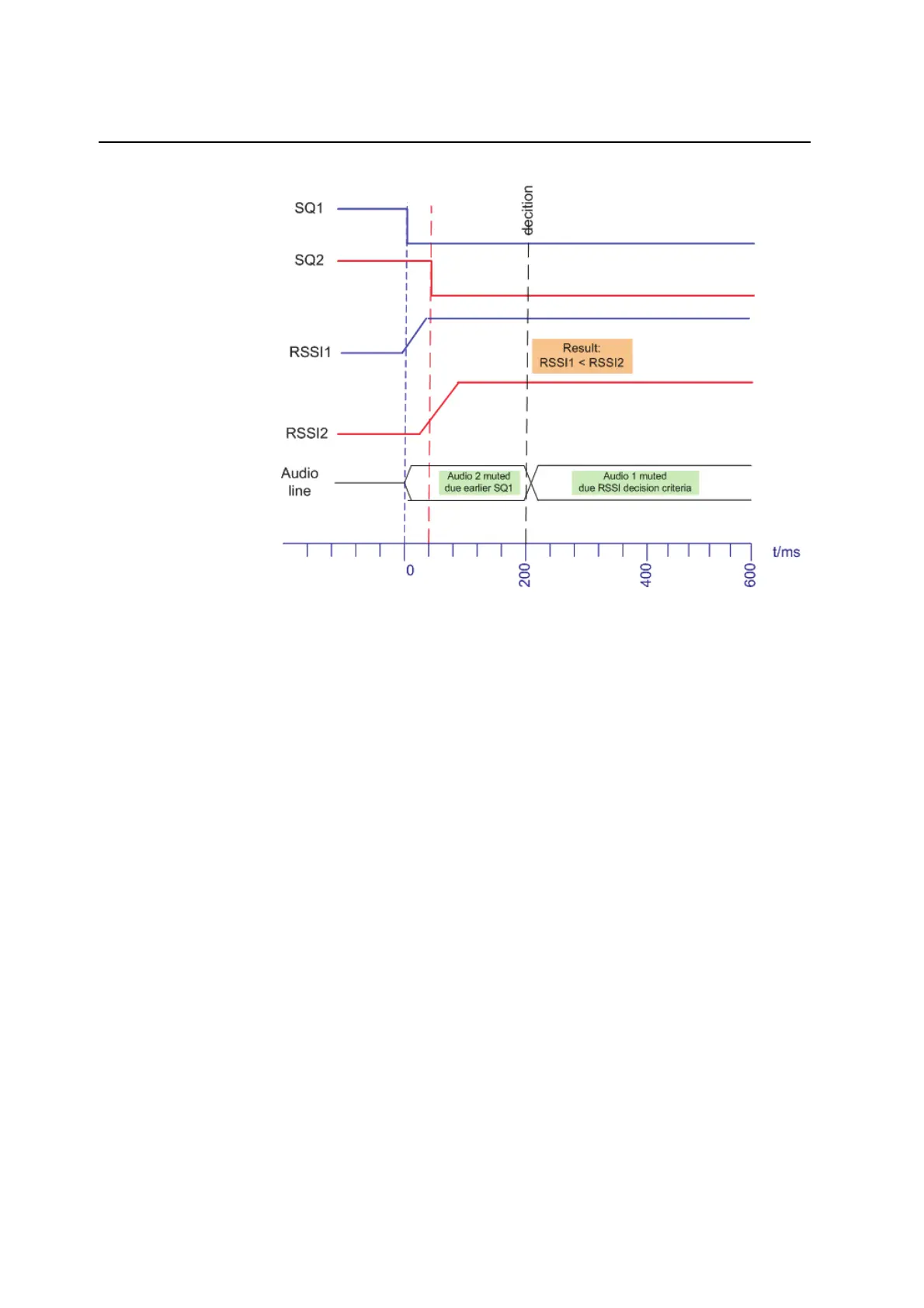

Fig. 3.86
Radio 2 has a stronger re
ceive signal, audio signal is
switched after 200 ms from radio 1 to radio 2.
3.11.2
Cabling
Instructions
1.
Connect the USER_OUT2
(X11.14) sig
nal to the /AF_INHIBIT (X11.7)
input and the RSSI (X11.8) signal to the EXT_RSSI
(X11.5) input on
each radio.
2.
Connect the SQ+ (X10.8), SQ- (X1
0.8), AUDIO_RxA (X10.2) and
AUDIO_RxB (X10.3) outputs of
the two radios in parallel.
142
144
