Local Control (Local Mode) R&S XU 4200
3.31 6166.5368.02.01
3.4.3 Screen Display
3.4.3.1 Start Display
Display parameter

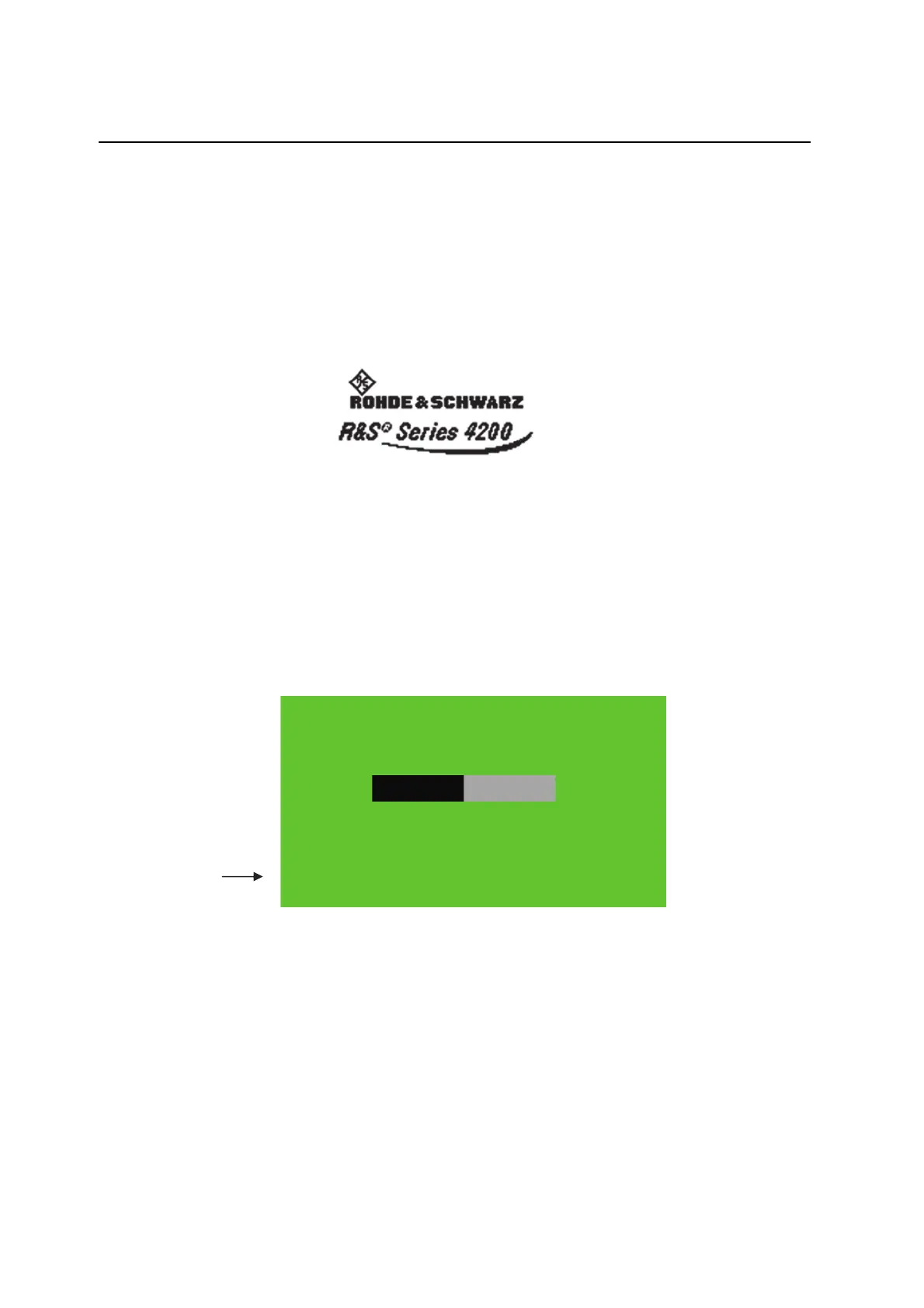

The start display is an independent screen containing the radio name and
type. After booting the transceiver is started (see chapter 3.4.3.2).
Fig. 3.10 R&S Series 4200 logo.
3.4.3.2 Boot Display
Display parameter
The boot display is an independent screen containing a progress bar and
boot messages. The progress bar displays the current boot process state of
the transceiver.
Booting of the transceiver is completed when the standard operating display
appears (see chapter 3.4.3.3).
Boot displ ay\Boot displ ay "Name".doc
5
0
%
T X : I n i
t
H
W
O
K
R X : I n i
t
L
A
N
O
K
Fig. 3.11 Boot display.
In case of boot error
Boot errors are handled by a special error routine which allows the radio to
end the booting process and start the operation. This is indicated by the
TX/RX CBIT 0344/0434. This error can be than read out via remote control.
Note: If the booting stops and the message “Boot Error” is displayed, switch
the transceiver off and on. In case the error persists, return the transceiver
to our service center for checking.
