Attachment and installation
23
3

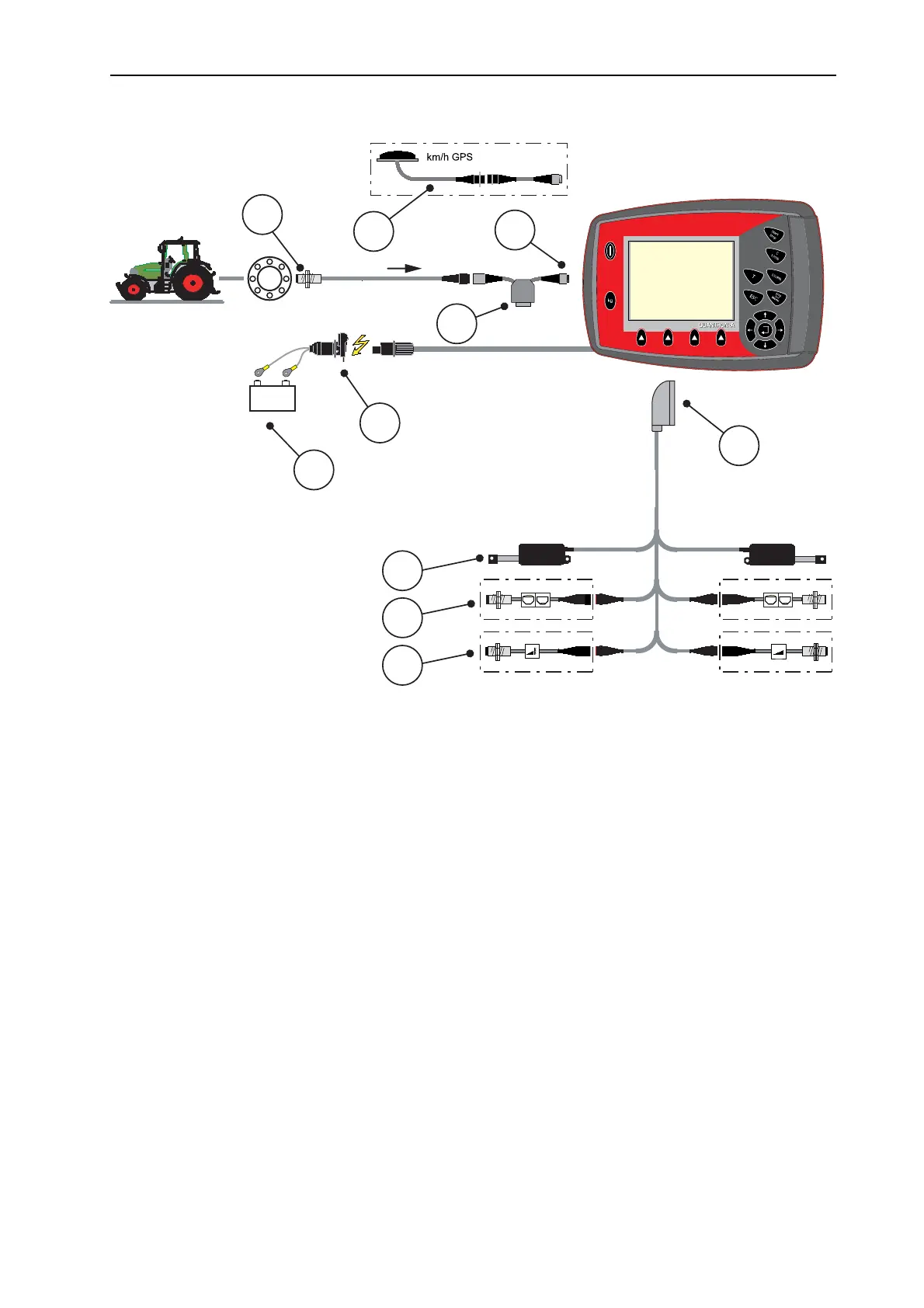

Schematic connection diagram for wheel sensor:
Figure 3.4: Schematic connection diagram QUANTRON-A (wheel sensor)
[1] Serial interface RS232, 8-pin plug connector
[2] 39-pin machine plug
[3] Metering slide actuator left/right
[4] Option (level sensor left/right)
[5] Option (TELIMAT sensor top/bottom)
[6] Battery
[7] 3-pin plug connector conforming to DIN 9680 / ISO 12369
[8] Option: Y-cable (V24 RS232 interface for storage medium)
[9] Forward speed sensor
[10] Option: GPS cable and receiver
km/h
+
-
1
2
3
5
6
7
9
10
4
8
