Operation QUANTRON-A
75
4
Example metering slide
1. Open the System / Test > Test/diagnosis menu.
2. Select the metering slide menu item.
3. Press the Enter key.
The status of the sensors/actuators is displayed.

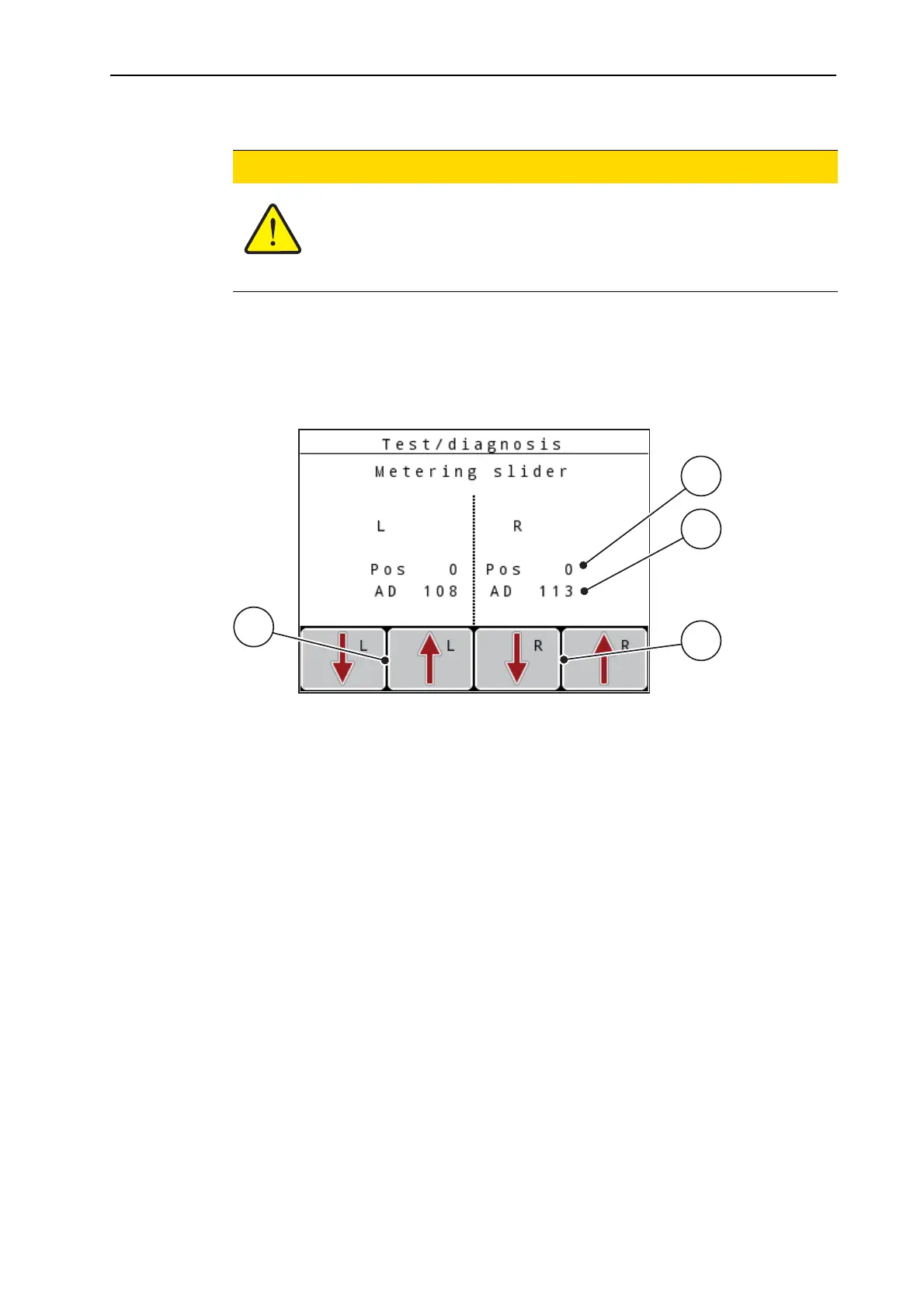

Figure 4.26: Test/diagnosis, example: Metering slide
[1] Position display
[2] Signal display
[3] Function keys for right actuator
[4] Left actuator function keys
The status of the signal for the left and right hand side is displayed separately by
means of the signal display.
The actuators can be extended and retracted by pressing the F1 - F4 function
keys.
n CAUTION
Risk of injury due to moving machine parts.
During the tests, machine parts may start to move automatically.
Before carrying out the test, ensure that nobody is present
in the danger zone of the machine.
