nVent.com/RAYCHEM
|
19RAYCHEM-OM-EU2032-NGCUIT3EX-EN-2203

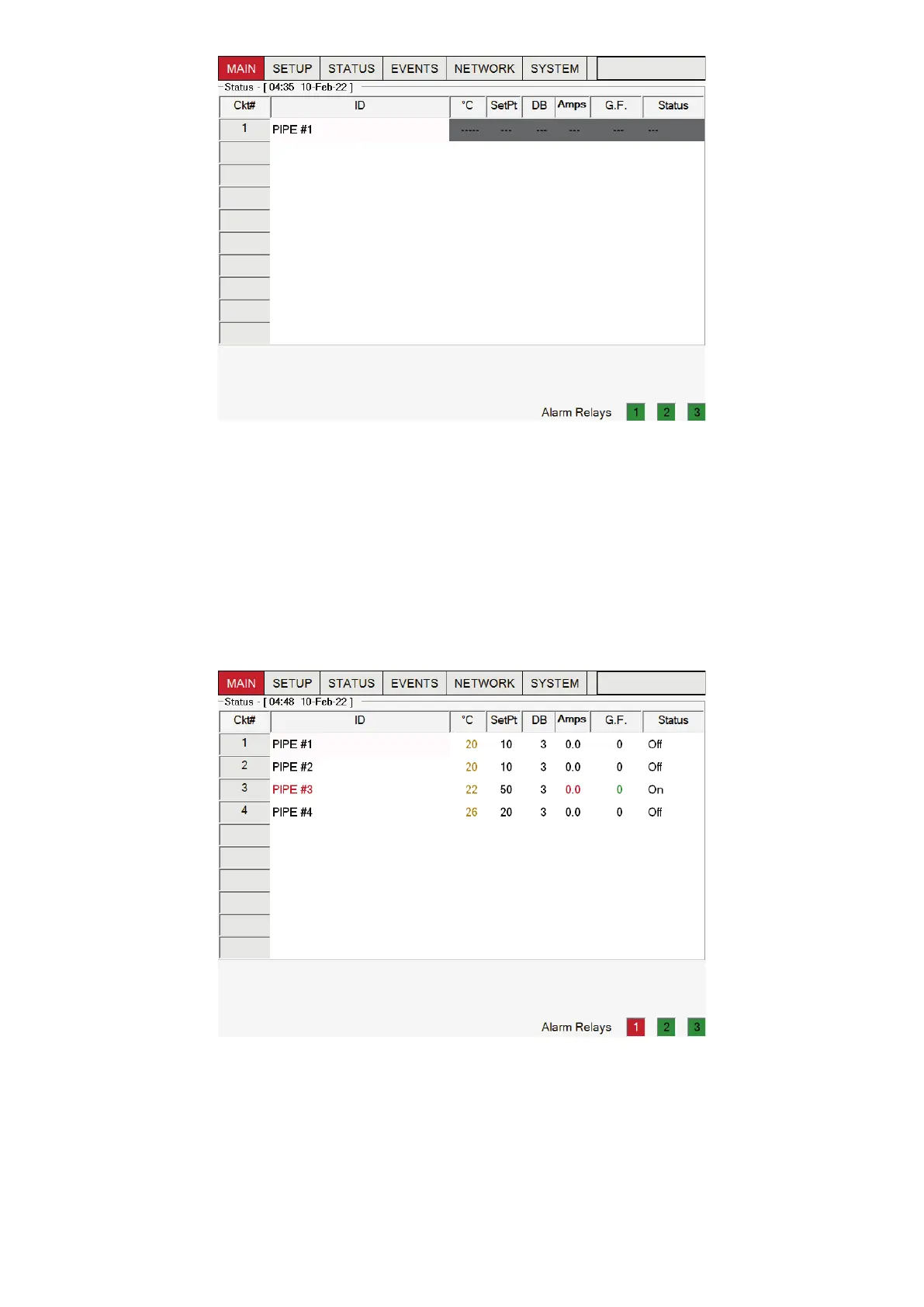

Fig. 2.18 Circuit 1 disabled
• On the Main menu window, any Disabled Circuit is grayed out as above
Follow Steps 4 through 10 above to set-up each additional Circuit.
–
After completing the Setup for Circuits 1, 2, 3, and 4, and Circuits are Enabled, go to the Main window to confirm all Circuits are
activated and working properly.
Fig. 2.19 Main status window for confirmation
