26
|
nVent.com/RAYCHEM RAYCHEM-OM-EU2032-NGCUIT3EX-EN-2203
The Setup | Circuit window is the first window of the Setup sequence.

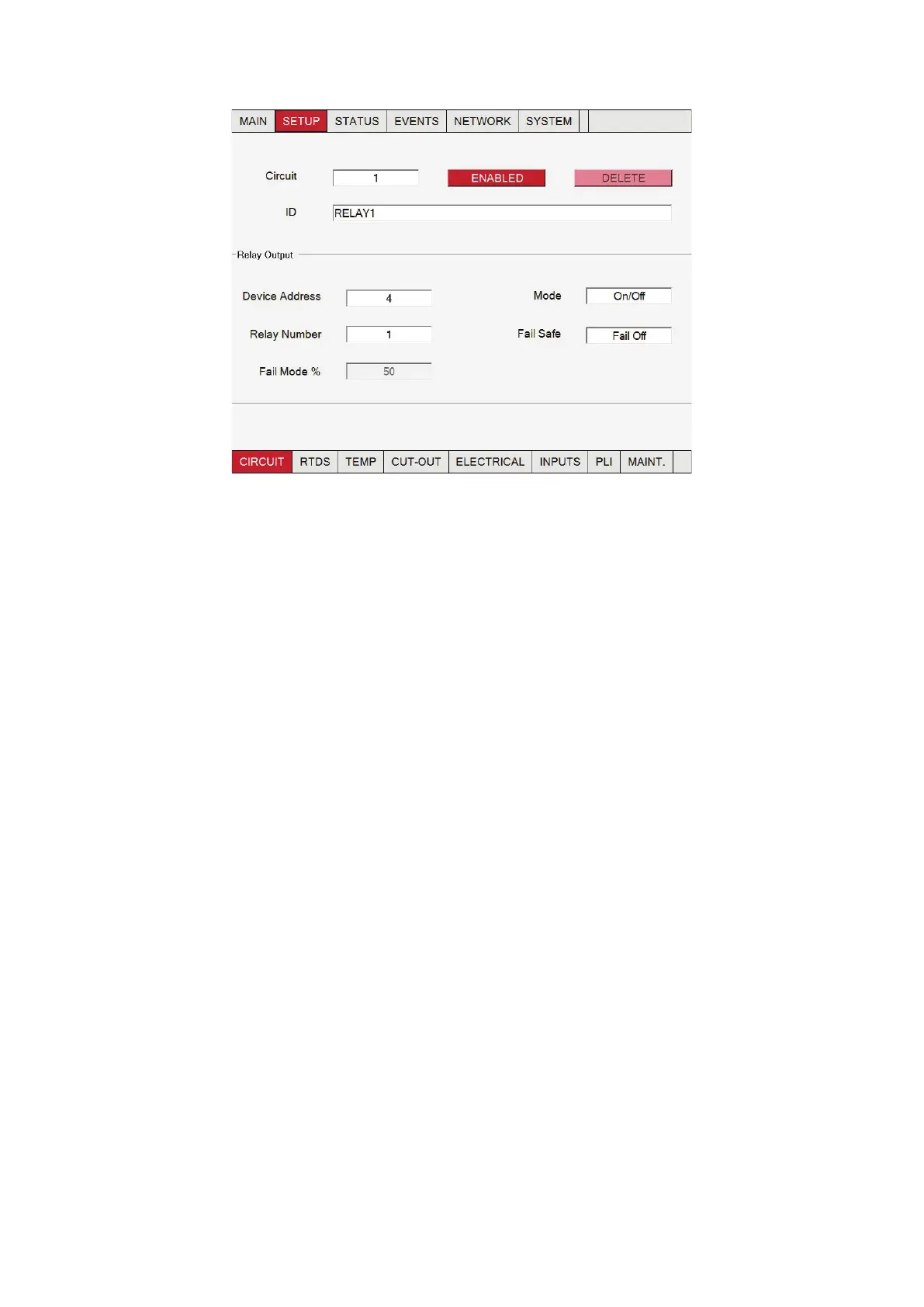

Fig. 3.8 Setup | Circuit window
The Circuit # is assigned when setting up a Circuit in the NGC-30 program. It is the primary reference for all windows. Once a Circuit
is added, you cannot change its Circuit number; however you can delete the Circuit (except for Circuit 1). This Setup|Circuit window is
also where you can select an existing Circuit.
When , the NGC-UIT3 monitors and generates Circuit alarms.
If a relay output has been assigned to the Circuit, the relay output turns on or off based upon set-up parameters and RTD inputs, and
the selected control mode.
When , the NGC-UIT3 has disabled the Circuit, and does NOT generate alarms or control the relay assigned to the Circuit. The
relay remains in the off position. The Circuit is grayed out in the main window to show it is .
Deletes the Circuit that is currently being displayed and removes it from the main window. Any Circuit can be deleted EXCEPT for
Circuit 1. The program asks for confirmation before deleting.
The Circuit ID is user-definable name tag. The default is “ID XXX” (where XXX is the Circuit number).
Limit: 40 characters (character strings are truncated on the Main Window after 16 characters but displayed in full on Status and Setup
win-dows)
