Raychem nvent NGC-UIT3-EX - Status | PASC Window; Status | Voltage Window

nVent.com/RAYCHEM | 41RAYCHEM-OM-EU2032-NGCUIT3EX-EN-2203

The Status | PASC window displays the current status of Circuit switching PASC algorithm. Data displayed in this status window
cannot be changed.

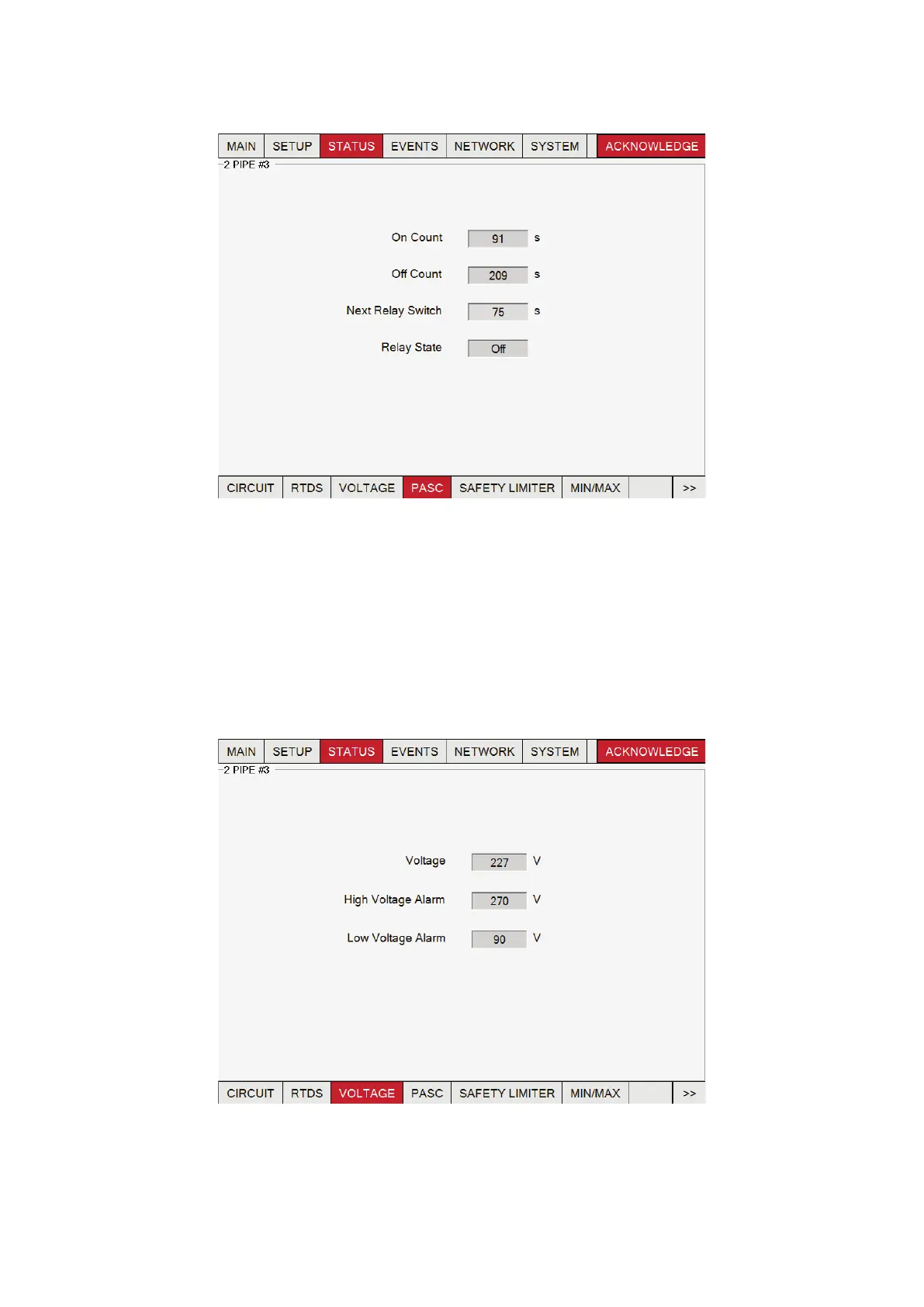

Fig. 3.23 Status | PASC window
The Status|PASC window provides the following controls:
•  - The duration (in seconds) an EMR or SSR is on during one on/off cycle
•  - The duration (in seconds) an EMR or SSR is off during one on/off cycle
•  - The time (in seconds) until the EMR or SSR changes state. This value counts down to zero for each on or
off cycle
•  - Current state (off or on) of the EMR or SSR assigned to this Circuit

The Status | Voltage window displays the measured line voltage from the NGC-30-CRM/CRMS.
Fig. 3.24 Status | Voltage window
