48
|
nVent.com/RAYCHEM RAYCHEM-OM-EU2032-NGCUIT3EX-EN-2203
Event
Safety Limiter Comm OK
Elexant 5010i / NGC-20 Safety Limiter sub-system can communicate with the Elexant 5010i /
NGC-20 processor
Safety Limiter Reset
Elexant 5010i / NGC-20 Safety Limiter has been reset and Safety Limiter temperature is below
Safety Limiter setpoint
Safety Limiter Sensor OK NGC-20 RTD is working properly
System Restart NGC-30 system has restarted at time noted
Temp OK Control Temp returned to acceptable range
User Alarm OK User alarm has been cleared
Voltage OK Line voltage returned to acceptable range
.
Black All events
Orange Alarm that has been Acknowledged
Red In Alarm condition and has not been Acknowledged
Blinking Red/Orange Latching Alarm condition which requires Reset in the Status | Circuit window
This window summarizes the device addresses and resources (output devices/ relays and RTD inputs) that have been found by the
system and can be used for setup.

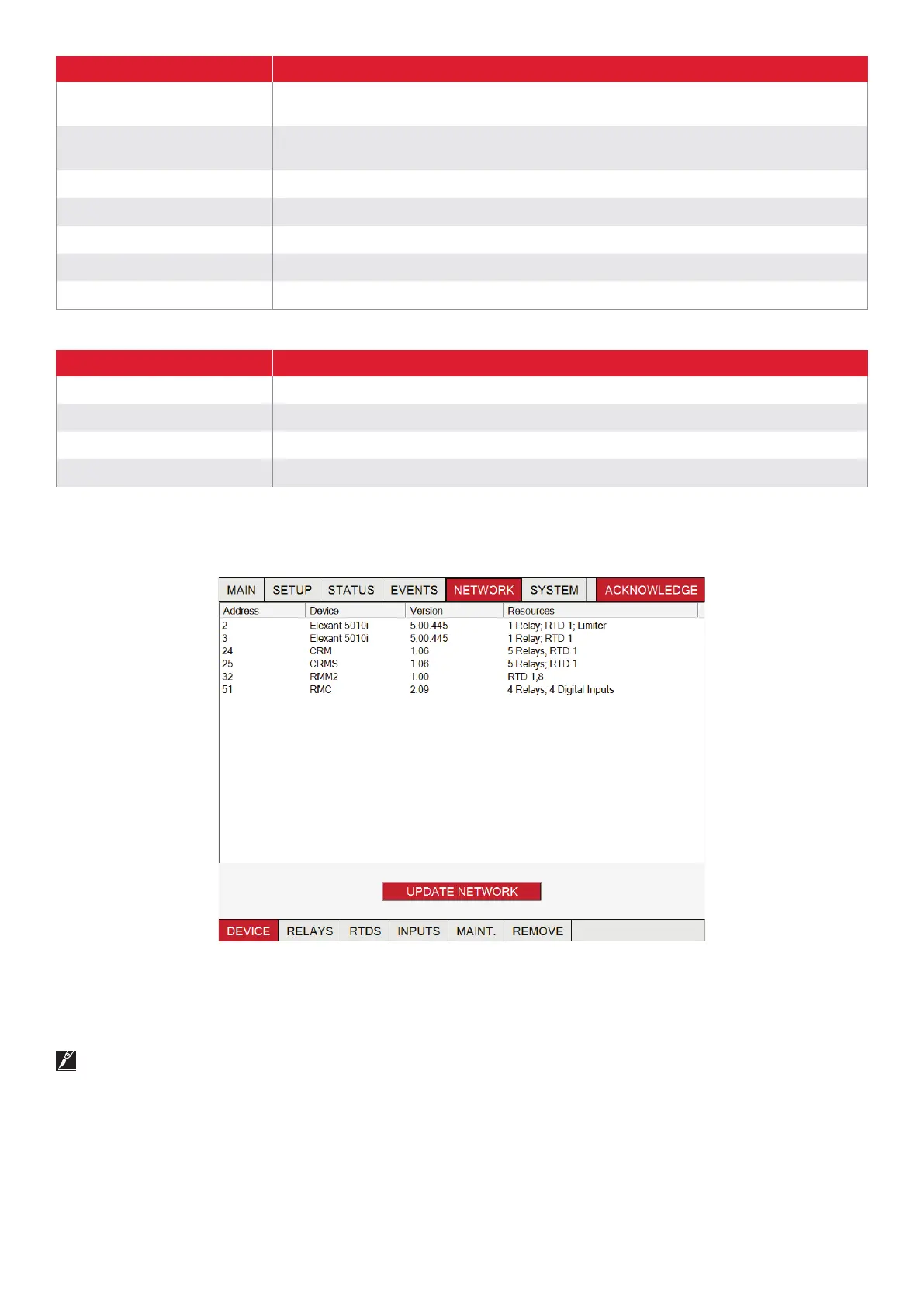

Fig. 3.34 Network | Devices window
Pressing this button starts a search/scan for all connected peripheral devices. When the scan is completed, the window displays all
devices and RTDs found connected to the NGC-UIT3.
If expected devices or RTDs are not discovered on the first scan, Update Network may be pressed a second time.
If a known device or RTD is not discovered, check for proper connection to the RS-485 wiring, power at the peripheral device, and
possible address conflicts (no two peripheral devices can have the same address setting).
Use the Update Network button whenever a new device or RTD is added to the system.
To add a new device or RTD, make sure it:
1. Has a unique address
2. Has power
3. Is connected to the RS-485 wiring
