44
|
nVent.com/RAYCHEM RAYCHEM-OM-EU2032-NGCUIT3EX-EN-2203
The Status|Safety Limiter window displays the current Safety Limiter’s temperature and a historical record of minimum and maximum
values recorded since the last Reset time. Data in this status window is “read only” information. Pressing reset releases all min./max.
values and starts another period of accumulation for minimum and maximum values.

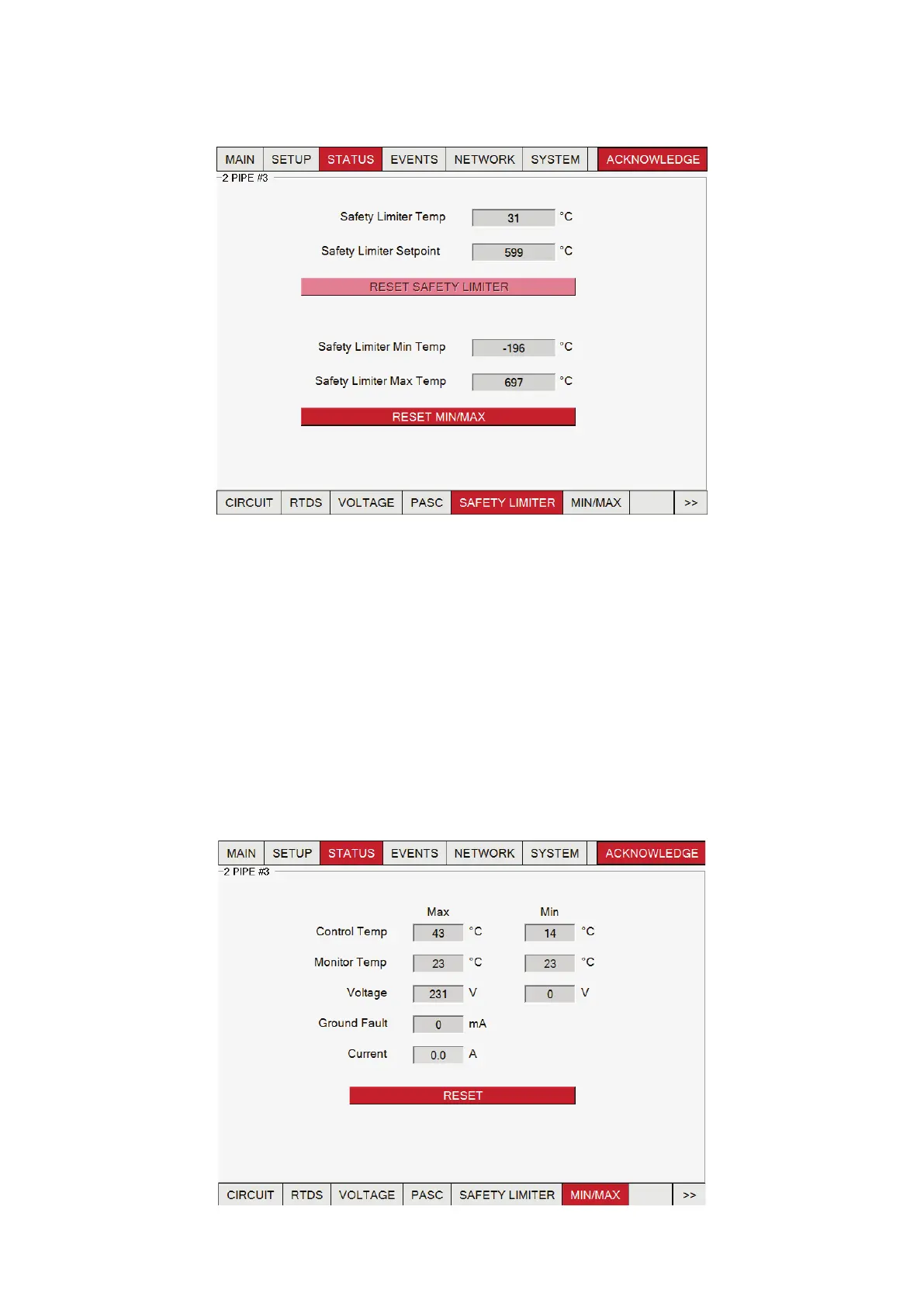

Fig. 3.29 Status | Safety Limiter window
The Status|Safety Limiter window provides the following controls:
• - Displays the last reported temperature from the Safety Limiter’s RTD
• - The temperature that the controller is using for the Safety Limiter alarm
• - In normal state, the Reset Safety Limiter button in grayed out. If a latching alarm occurs, the
Reset Safety Limiter button blinks orange/red. The alarm cannot be reset until the Safety Limiter’s temperature is below the Safety
Limiter’s Setpoint.
• - The lowest temperature reported by the Safety Limiter’s RTD since the last reset time
• - The highest temperature reported by the Safety Limiter’s RTD since the last reset time
This window displays an historical record of minimum and maximum values recorded since the last Reset time. Data in this status
window is “read-only” information. Pressing reset releases all values and starts another period of accumulation for minimum or
maximum values.
Fig. 3.31 Status | Min/Max window
