50
|
nVent.com/RAYCHEM RAYCHEM-OM-EU2032-NGCUIT3EX-EN-2203

This window allows you to set the PLI module's mode: either SES transmitter or TT transmitter. This screen will only be displayed if
the NGC-30 detects any PLI modules on the network.

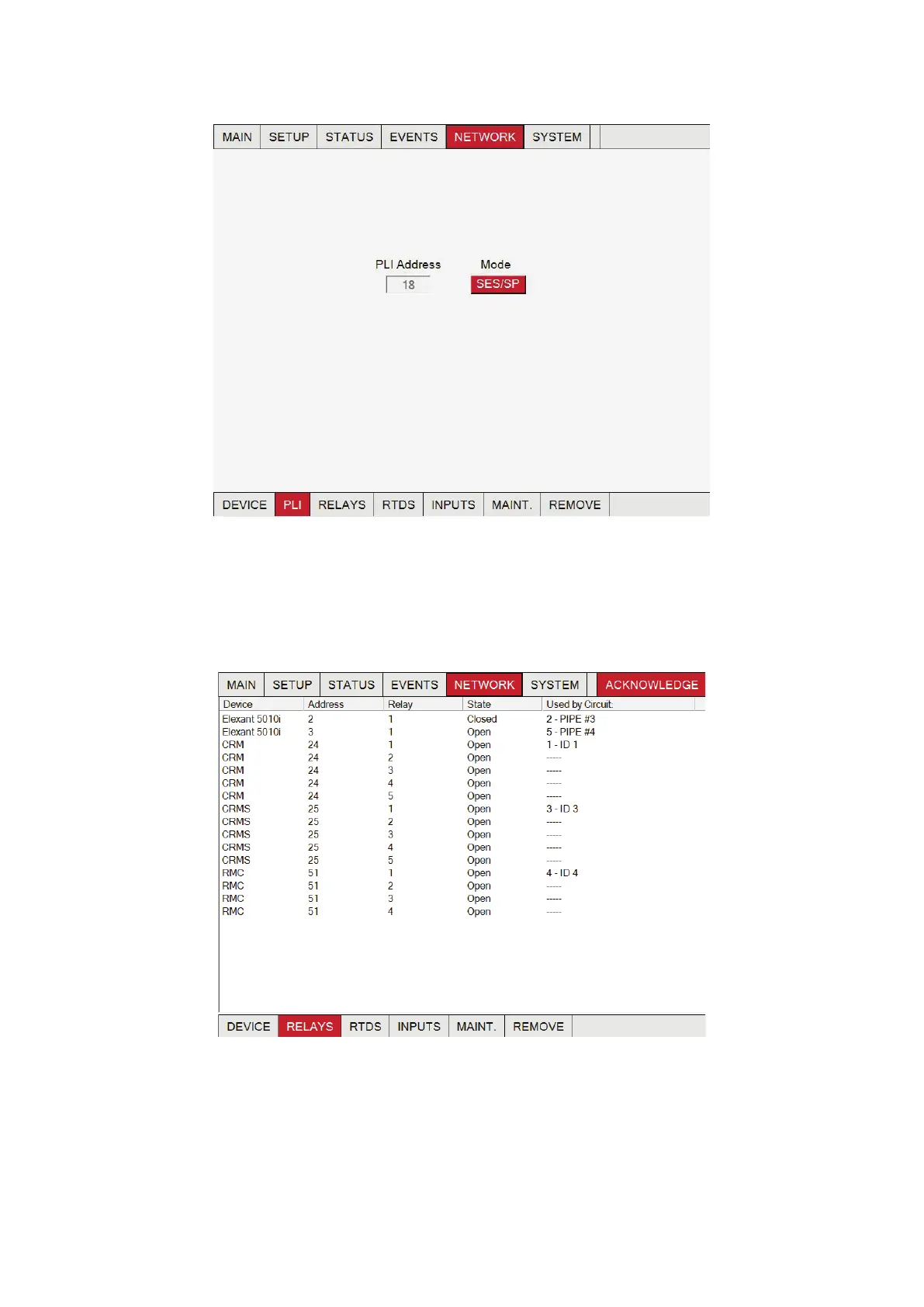

Fig. 3.35 Network | PLI window
Individual PLI module can only operate in one mode and can only be used in conjunction with one type of sensor at one time. Tapping
on the Mode button next to the PLI Address will toggle between SES transmitter and TT transmitter.

This status window lists all the available output devices and relay numbers, as well as the relays that have already been setup.
Fig. 3.36 Network | Relays window
