The Events window displays a chronological history of all events and alarms. It retains the most recent 2000 entries; after 2000
entries are recorded, the oldest entries are discarded as new entries are added.

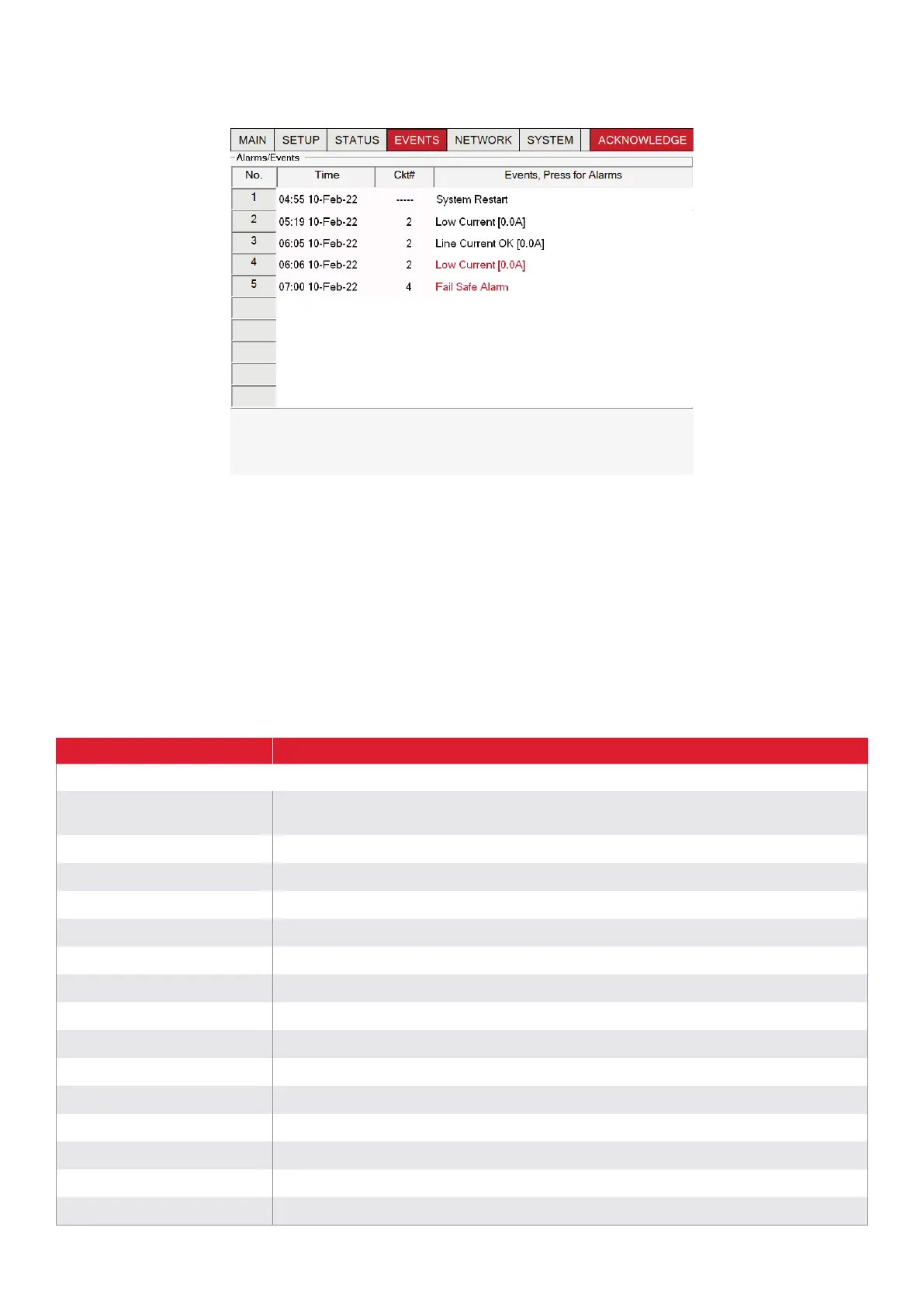

Fig. 3.33 Events window
The Events status listing window provides the following information:
• - By pressing the Time column heading, the display of times of the events or alarms changes to descending or
ascending order based on time of occurrence
• - By pressing the Circuit heading, the display of events or alarms is sorted by the Circuit number. Circuits are
first displayed in ascending order. Pressing the Circuit again toggles between ascending or descending order
•
- By pressing the Events, Press for Alarms heading, the Events display filters events or alarms by type. Time and Circuit column
headings can then be used to further sort the selected events or alarms for display. (Important: The program automatically skips
an alarm type if no alarms of that type exist)
.
Comm Alarm NGC-UIT3 display lost communication with an NGC-30-CRM/-CRMS, PLI module, and/or
RMM2 module(s)
Fail Safe Alarm Control mode of Circuit has been switched to Fail Safe control mode
CB Trip Alarm Circuit Breaker Trip Alarm occurs when the Digital Input matches the Circuit Breaker Trip state
Ground-Fault Alarm Heater’s ground-fault current went above high ground-fault current alarm setting
Ground-Fault Trip Heater’s ground-fault current went above the ground-fault trip setting
Heater Time Alarm Heater’s energized time went above the heater’s alarm threshold
High Current Heater’s current went above high current alarm setting
High Temp RTD temperature went above high temp alarm setting
High Temp Cut-Out RTD temperature went above high temp cut-out alarm setting
High Voltage Line voltage went above high voltage alarm setting
Low Current Heater’s current went below low current alarm setting
Low Temp RTD temperature went below low temp alarm setting
Low Voltage Line voltage went below low voltage alarm setting
Power Input Alarm Power Input state does not match the Relay Output State
Relay Cycle Alarm EMR cycle count went above relay cycle alarm setting
To Next Page
