The Status | Min/Max window provides the following controls:
• - The lowest measured temperature used for control reported by any RTD associated with the Circuit since
the last Reset time
• - The highest monitored temperature used for control reported by any RTD associated with the Circuit
since the last Reset time
• - The lowest temperature measured used for monitoring purposes reported by any RTD associated with
the Circuit since the last Reset time
• - The highest temperature measured used for monitoring purposes reported by any RTD associated with
the Circuit since the last Reset time
• - The highest voltage recorded for the circuit since last Reset
• -The lowest voltage recorded for the circuit since last Reset
• - The highest ground-fault value recorded for the Circuit since the last Reset time
• - Immediately resets all Min/Max values and begins updating Min./Max. fields with new values
• - The highest current recorded for the Circuit since the last Reset
This window displays the cumulative time in hours the heater has been On and the number of cycles the EMR has turned on and off
for the selected Circuit. Data displayed in the counter windows is read only. Pressing the Reset buttons resets the appropriate counter.

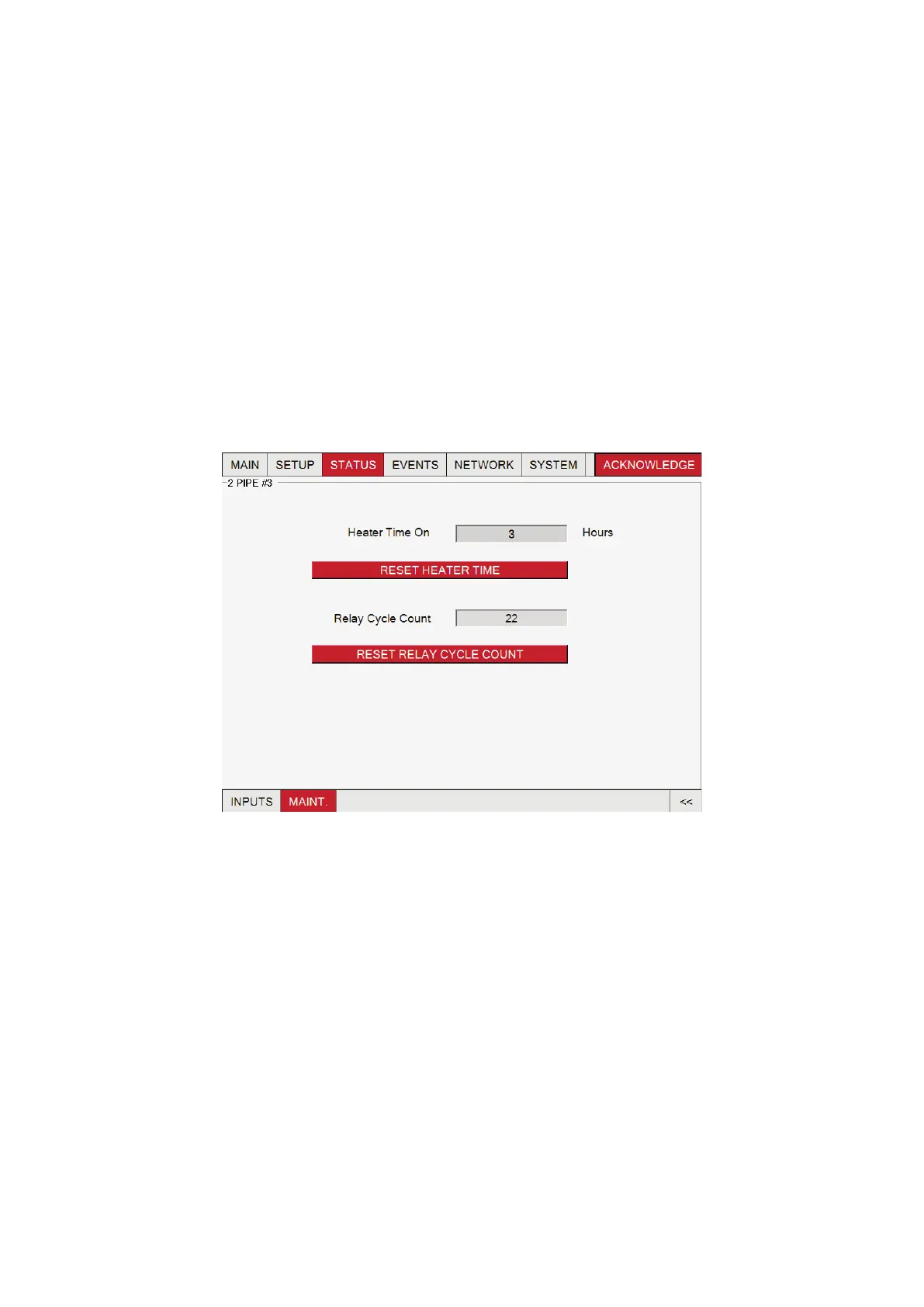

Fig. 3.32 Status | Maint. window
The Status|Maint. window provides the following controls:
• - Total time the heater has been energized since it was last Reset
• - Resets heater time to 0, and begins updating the field with new values
• - Total number of times the EMR has switched on since it was last Reset
• Action - Resets the Relay Cycle count to 0, and cycle counts begin again
To Next Page
