22
|
nVent.com/RAYCHEM RAYCHEM-OM-EU2032-NGCUIT3EX-EN-2203

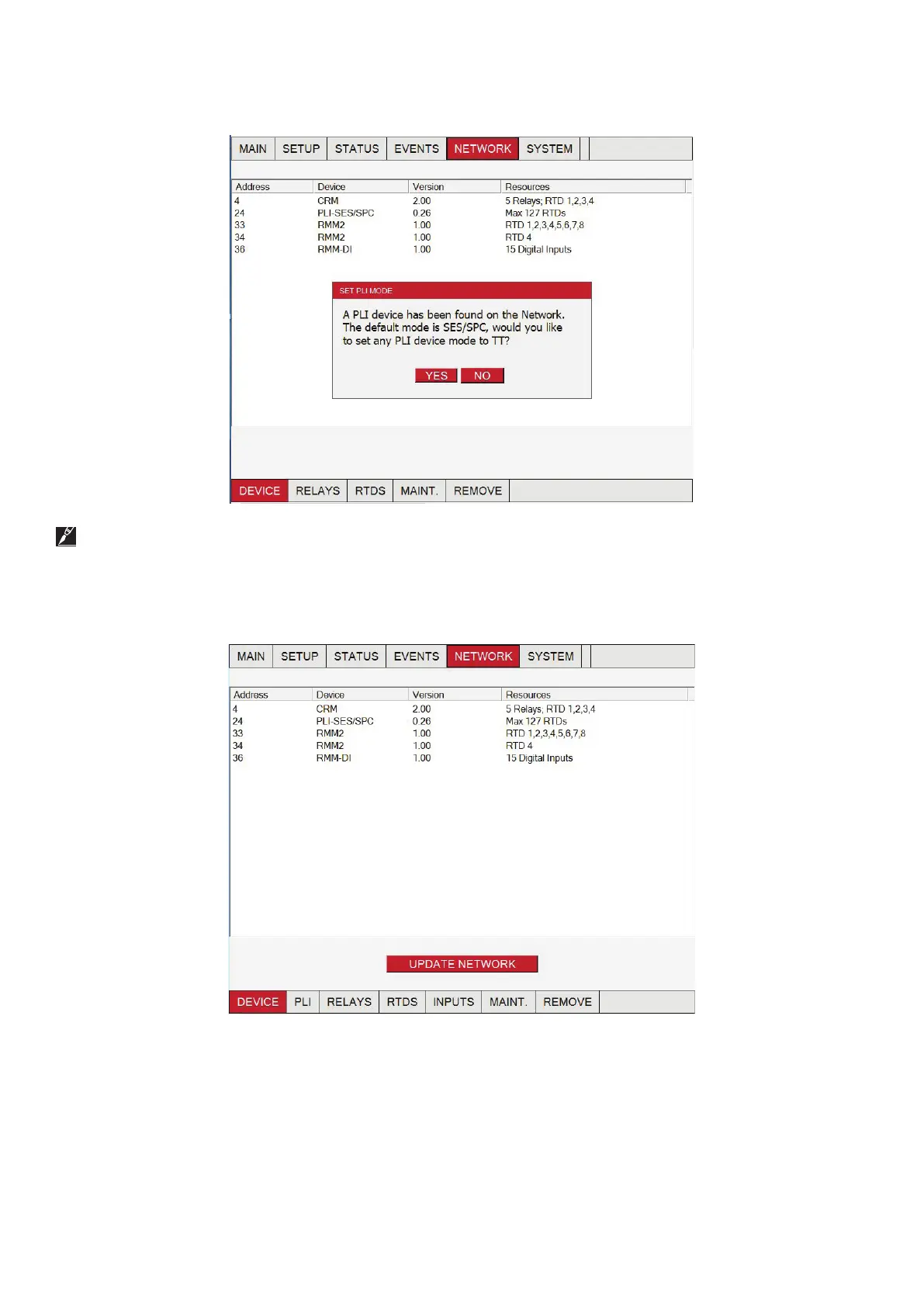

If a PLI (Power Line Carrier Interface) module is detected in the scanning process, a pop-up window will open, asking whether the PLI
Mode should be changed from the default mode of PLI-SES/SPC to the PLI-TT. If a SES or SPC Transmitter is connected to the PLI
module, the option "NO" should be selected. The NGC-30 UIT3 indicates this PLI as PLI-SES/SPC. If a 700-TT Transmitter is connected
to the PLI module, the option "YES" should be selected. The NGC-30 UIT3 indicates this PLI as PLI-TT.
Fig. 3.2 Set PLI Mode
The NGC-30 Control System can support up to 4 PLI Modules. Each PLI module can support up to 127 SES or SPC
transmitters and up to 255 700-TT transmitters. The SES/SPC and 700-TT transmitters are not compatible and can not be connected
to the same PLI module
The Network will then be updated with the connected devices, in this case with one NGC-30-CRMS board, one RMM2 and one PLI-
SES/SPC modules.
Fig. 3.3 Connected Network|Devices window
