a) 1500/1500,2000/2000b) 3000/3000,2000/4000,4000/2000c) 4000/4000,6000/6000

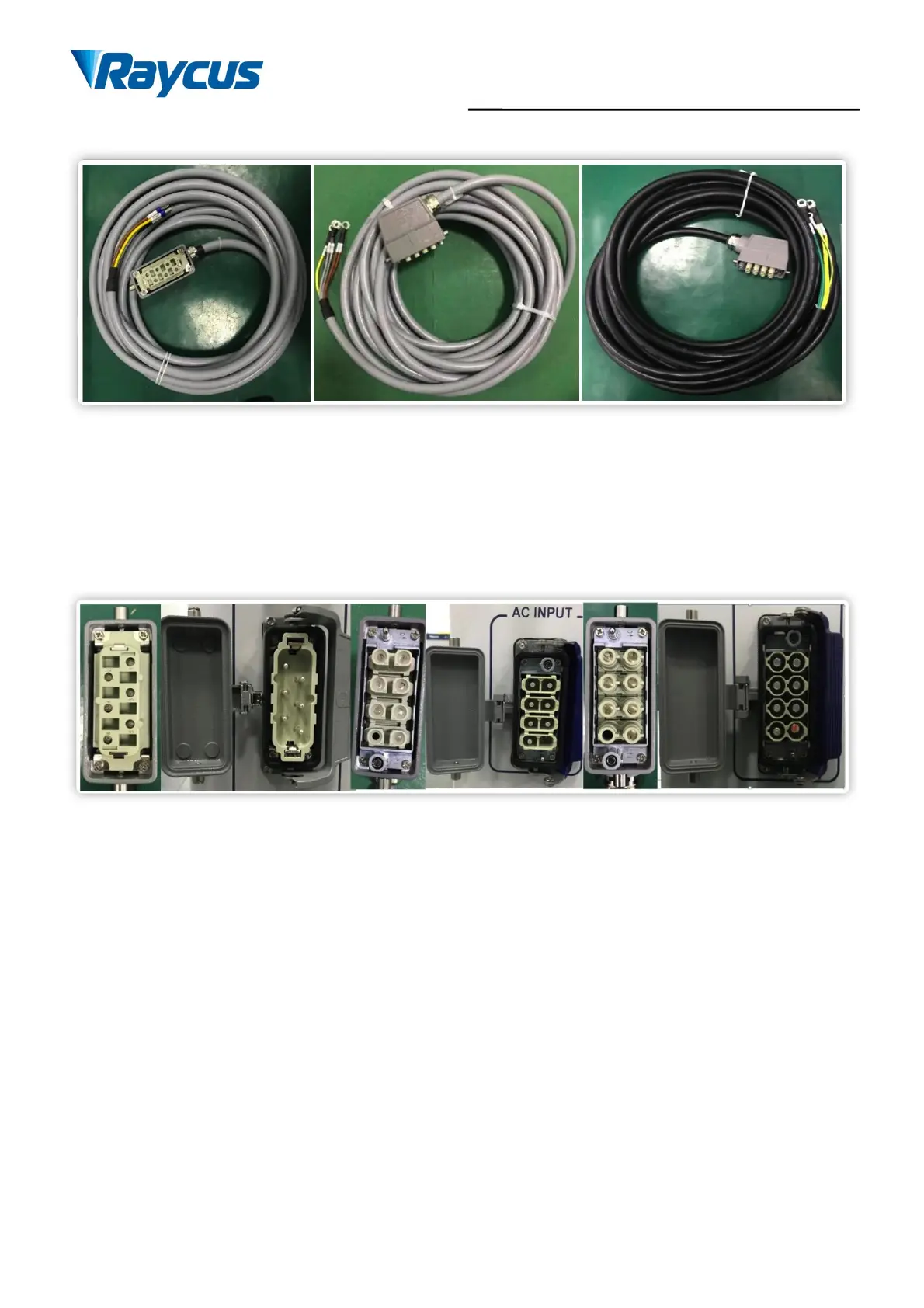

Figure 10 Power cords of differentmodels
Insert the plug at the end of the power cord into the “AC INPUT” socket on the rear panel. Notice that
the plug is wrong-side proofing. After insertion, lock it with the latch. As Figure 11 Power cordplug and
socket.
a) 1500/1500,2000/2000 b) 3000/3000,4000/2000 c) 4000/4000,6000/6000
Figure 11 Power cordplug and socket
RFL-1500/1500-ABP and RFL-2000/2000-ABP models use four-core power cable. RFL-
3000/3000,2000/4000,4000/2000,4000/4000,6000/6000 models use seven-core power cable. AC interface
definition and requirements are shown in Table 4.
